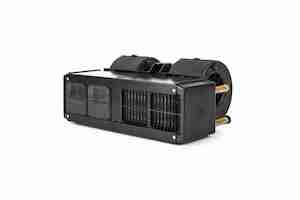

Autoterm Fan Matrix Minox 12C 12v 11.9kw

Liquid Heat Exchanger MINOX 12 C 700 m3 12V 11.9 kW

The Liquid Heat Exchanger MINOX 12 C delivers 11.9 kW heating capacity at 700 m3h air flow. Part number FR015. Designed for use with ETHYLENE glycol and AUTOTERM Flow series heaters. 12V operation with 3-speed fan control. Features

- 11.9 kW thermal output using ethylene glycol
- 700 m3h nominal air flow (3-speed fan)
- Compatible with AUTOTERM Flow 5 D/B and Flow 14D heaters
- 16 mm glycol inlet/outlet connections
- Maximum fluid temperature: 100degC (88degC with Flow series)
- Requires optional FR018 rotary switch for speed control Specifications

- Part Number: FR015
- Voltage: 12V DC
- Fan Speeds: 3
- Glycol Connections: 16 mm ID
- Max Operating Temp: 100degC
- Certification: SIROCO manufacturing standards Required Accessories (sold separately)

- 4-position rotary switch FR018
