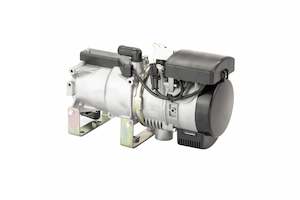

AUTOTERM Flow 14D
The Liquid Heater is a 14.5 kW diesel pre-heater system suitable for trucks, buses, boats, yachts, and off-highway vehicles. Operates independently of the engine and supports both 12V and 24V DC systems. Features
- Produces 14.5 kW heating power using diesel fuel
- Available in 12V and 24V DC versions
- Independent operation from the vehicle engine
- Pre-heats engine and passenger compartment
- Functions as auxiliary heater in extreme cold
- Includes full installation kit
- Compatible with radiator systems or boilers up to 70 L capacity
- Used in trucks, motorhomes, yachts, and off-highway machinery Specifications
- Part Name:
- Former Name: 14TC-MINI
- Heating Output: 14.5 kW
- Voltage: 12V or 24V DC
- Fuel: Diesel (EN590)
- Fuel Consumption: 0.5 to 1.2 L/h
- Power Consumption (12V): 46 to 124 W
- Power Consumption (24V): 46 to 113 W
- Coolant Type: Coolant, antifreeze coolant
- Optimal Coolant Volume: 25 to 30 L
- Coolant Flow at 0 bar: 2000 L/h
- Coolant Flow at 0.18 bar: 1300 L/h
- Coolant Inlet/Outlet: 20 mm OD
- Max Operating Altitude: 1000 m
- Noise Level: 80 dB
- Control Modes: Manual, remote
- Compatible Panels: OLED Control Panel, Comfort Control, Push Control
- Heater Weight: 5.7 kg
- Total Set Weight: 16 kg
- Heater Dimensions: 340 x 160 x 206 mm
- Package Dimensions: 880 x 330 x 300 mm
