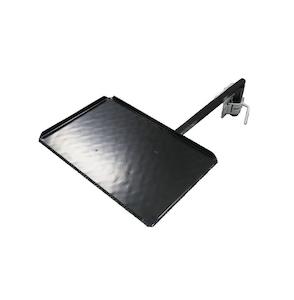

BBQArm Kit Black 850mm Arm Regular Size Tray for Weber Baby Q or Similar
The Original Swing Arm BBQ Table
This BBQArm kit includes an 850mm arm and a regular size tray, both finished in black. Designed and manufactured in Australia, it mounts easily to your caravan drawbar or rear bar, providing a stable and space-saving table for your outdoor BBQ. The arm swings away when not in use. The kit is compatible with the new TOW-HITCH mount for use on tow vehicles, allowing BBQArm use when travelling with or without a caravan. Features
- Arm length: 850mm, black powder-coated galvanised steel
- Tray size: 560mm x 360mm, chequerplate aluminium with upturned edges, suitable for Weber Baby Q Q2000 and similar models
- Universal Drawbar Mount: no-drill clamp fits 50mm (2") drawbar or caravan rear bumper
- Optional Tow-Hitch Mount: fits standard tow-hitch receiver on vehicles
- Load capacity: rated to support up to 30kg when installed correctly
- Weight: approx. 7.5kg per kit
- Solid, simple design with minimal moving parts for durability
- Lightweight and portable for caravan and trailer use Installation Instructions
Universal Drawbar Mount:
- Loosen bolts on the drawbar mount clamp
- Position mount on caravan drawbar or rear bumper
- Tighten bolts securely with a spanner
- Loosen arm clamp handle and insert arm
- Tighten handle to secure arm
- Insert tray into square end of arm
- Secure tray by tightening locking screw/wing nut
Tow-Hitch Mount:
- Insert mount into tow-hitch receiver on vehicle
- Fit locking pin through mount
- Loosen arm clamp handle and insert arm
- Tighten handle to secure arm
- Insert tray into square end of arm
- Tighten locking screw/wing nut to secure tray BBQArm Mate Accessory
- Connects to existing BBQArm arm shaft
- Wrap clamp around arm tube and tighten bolt securely but allow swivel movement
- Place tray on arm end and tighten wing-bolt to secure
- Can attach to jockey wheel shaft if no BBQArm exists
