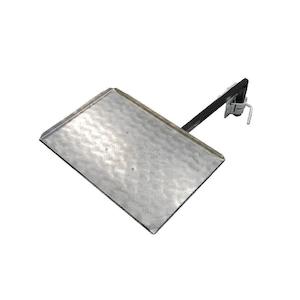

BBQArm Kit Black 850mm Arm Silver Large Size Tray for Ziggy or Most Bbqs
The ORIGINAL Swing Arm BBQ Table - BQA850-TRAYLGE-UDM
This kit includes a black 850mm arm and a large 700mm x 500mm silver alloy tray, suitable for Ziggy and most portable barbecues. Designed and made in Australia, the BBQARM mounts easily to your caravan drawbar or rear bumper, providing a sturdy, space-saving outdoor cooking surface that swings away when not in use. A new tow-hitch mount option allows use on vehicles without a caravan. Features
- 850mm black arm made from powder-coated, galvanised steel
- Large silver alloy tray made of chequer-plate aluminium with upturned edges (700mm x 500mm)
- Universal no-drill drawbar mount fits 50mm (2") drawbars or caravan rear bumpers
- Tow-hitch mount available for use on tow vehicles
- Kit includes mount, arm, and tray
- Rated to carry up to 30kg when correctly installed
- Overall kit weight approximately 7.5kg Installation Instructions
Using Universal Drawbar Mount
- Loosen the two bolts on the mount
- Position the mount on caravan drawbar or rear bumper
- Tighten bolts securely with shifting spanner
- Loosen clamp handle and insert arm, then tighten handle
- Insert tray into square tube end of arm
- Tighten the locking screw/wing-nut to prevent movement
Using Tow-Hitch Mount
- Insert mount into vehicle tow-hitch receiver
- Secure with locking pin
- Loosen clamp handle and insert arm, then tighten handle
- Insert tray into square tube end of arm
- Tighten locking screw/wing-nut to secure tray BBQARM Mate Attachment
- Attaches to existing BBQARM arms or jockey wheel shaft
- Undo front bolt of clamp and wrap around arm shaft
- Tighten bolt securely but allow arm to swivel
- Place tray on arm and tighten wing-bolt What is BBQARM?
- Portable swing-away BBQ table for outdoor cooking
- Compact and lightweight design
- Built to withstand Australian climate conditions
- Ideal for caravans, trailers, and tow vehicles
