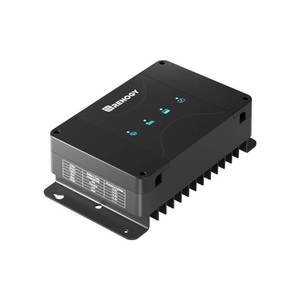

RENOGY CORE 500-11039 DCC30S 12V 30A Dual-Input DC2DC MPPT Charger RBC30D1S-G3-AU
The RENOGY CORE DCC30S 12V 30A Dual-Input DC2DC MPPT Charger (RBC30D1S-G3-AU) is a 12 V, 30 A dual‑input DC‑DC charger with integrated MPPT for alternator and solar charging. Features
- System voltage: 12 V DC
- Max charging current: 30 A
- Max solar input voltage: 30 V
- Max solar input power: 400 W
- Max alternator input power: 400 W
- Charging efficiency: up to 97%
- Charging stages: bulk, boost, float
- Battery types: SLA, GEL, Flooded, LiFePO₄
- Inputs: alternator and solar; automatic source switching
- Protections: undervoltage, overvoltage, short circuit, reverse polarity, over‑temperature
- Alternator compatibility: traditional and smart alternators
- Communication: RS485 via RJ45; Renogy app compatible
- Grounding: common negative
- Self‑consumption:< 30 mA
- Temperature compensation: −3 mV/°C/2 V
- Operating temperature: −35 °C to 65 °C
- Storage temperature: −40 °C to 80 °C
- Humidity range: 0%–95% RH
- Dimensions (L x W x H): 244 x 146 x 77 mm
- Weight: 1.41 kg
- Terminal size: M8 × 1.25–14 mm
- Model: RBC30D1S-G3-AU
- SKU: 500‑11039
