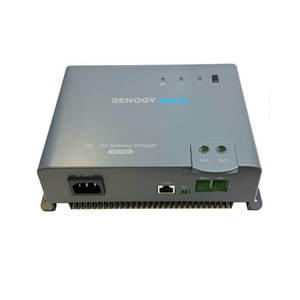

Renogy REGO 12V AC-DC 35A Battery Charger RACC35A1W-G1-AU
The Renogy REGO 12V AC-DC 35A Battery Charger (RACC35A1W-G1-AU) is a 12 V AC‑DC charger with a maximum 35 A output and multi‑chemistry support. Features
- Model: RACC35A1W-G1-AU (RACC35A1W)
- Output current: max 35 A
- Input: 180–264 V AC, 45–65 Hz
- Output voltage: 9–17 V DC
- Charging type: adaptive 4‑stage (Bulk, Boost, Float, Equalisation for flooded batteries)
- Battery compatibility: 12 V LiFePO₄, AGM/Sealed Lead Acid, GEL, Flooded Lead Acid; user‑defined custom profiles
- Protection: over‑voltage, over‑current, over‑temperature, low‑temperature, short‑circuit, reverse polarity
- Operating temperature: −20 °C to 60 °C
- Protection rating: IP32
- Mounting orientation: vertical or horizontal
- Ventilation clearance: minimum 150 mm on all sides
- Applications: RVs and motorhomes, marine setups, cabin/off‑grid solar systems, mobile workstations
- Dimensions: 228 x 160 x 72 mm
- Weight
