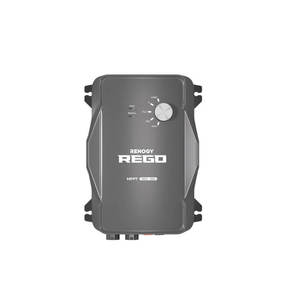

RENOGY REGO 12V 60A DC-DC Battery Charger 500-11014 RBC1260DO-12B-G1-AU
The RENOGY REGO 12V 60A DC-DC Battery Charger (RBC1260DO-12B-G1-AU) is a 12 V, 60 A bidirectional DC‑DC charger for off‑grid power management (SKU: 500‑11014). Features
- System voltage: 12 V
- Rated max charge current: 60 A
- Rated max charge power: 800 W
- Charging algorithm: 4‑stage
- Bidirectional function: charges house batteries from starter while driving; recharges and maintains starter battery when house batteries are full
- Battery types: SLD/AGM, FLD, GEL, Lithium, User
- Alternator compatibility: traditional and smart alternators
- Alternator input voltage: 13.5–16 V DC (max input voltage 16 V)
- Max alternator input current: 70 A
- Max alternator input power: 800 W
- Battery operating range: 10–16 V
- Charge efficiency: up to 94%
- Self‑consumption: ≤ 50 mA
- Power limiting protection: up to 800 W at 12 V
- Connections: Anderson terminals; rotary selector for battery type
- Protections: over‑voltage, over‑temperature, reverse polarity on inputs and outputs; short‑circuit protection
- Integration: compatible with Renogy ONE M1 & Core
- Storage temperature: −35 °C to 65 °C
- Dimensions (L x W x D): 353.53 x 212.75 x 102.21 mm (13.91 x 8.37 x 4.02 in)
- Model: RBC1260DO-12B-G1-AU
- SKU: 500‑11014
