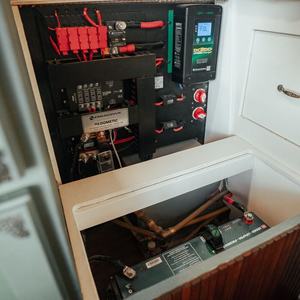

Enerdrive EPDM-01 eSYS Power Distribution Module for Caravan, 4WD & Marine
The Power Distribution Module (ePDM) Range by Enerdrive Dometic is a centralised DC distribution solution with a main positive input, resettable circuit breakers, midi and blade fuse positions, and a negative bus bar. The ePDM range is available with or without battery monitoring. Features
- Main distribution resettable circuit breaker: 120 A
- Inverter circuit breaker: 200 A standard (optional 250 A for 2600 W inverters) — ePDM‑02/03
- Fuse positions: 4 × midi fuses for loads/chargers (bus bar linked to main distribution breaker)
- 24‑hour fuse block: 4‑position 100 A — ePDM‑02
- Negative: 500 A main negative bus bar
- Battery monitoring options:
- No monitor — ePDM‑01
- ePRO battery monitor — ePDM‑02
- Simarine SC303 main shunt, SCQ50 quad shunt, and PICO panel display — ePDM‑03
- Configuration suitability:
- ePDM‑01: smaller systems without an inverter
- ePDM‑02: smaller systems with an inverter and ePRO monitoring
- ePDM‑03: smaller systems with an inverter and Simarine system/state‑of‑charge and individual load/charge monitoring
- Connections: integrated negative bus bar; midi and blade fuse holders for additional loads
- Application: 4WD canopies, caravans, camper trailers, and work vehicles
