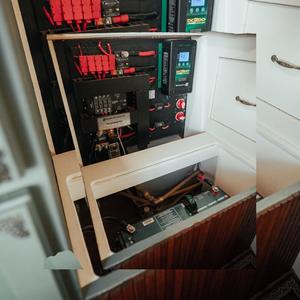

Enerdrive EPDM-02 eSYS Power Distribution Module + ePRO+ for Caravan & 4WD
The Power Distribution Module (ePDM) Range by Enerdrive Dometic Power Distribution Module is a centralised DC distribution panel with main circuit protection, midi/blade fuse positions, and a negative bus bar, available with or without battery monitoring. Features
- Main distribution resettable circuit breaker: 120 A
- Inverter circuit breaker (model dependent): 200 A standard; optional 250 A for 2600 W inverters
- Fuse positions: 4 × midi fuses for loads/chargers (linked to main distribution breaker)
- Negative: 500 A main negative bus bar
- Additional fuse block (ePDM‑02): 4‑position 100 A for 24‑hour loads
- Battery monitoring options:
- ePDM‑01: without battery monitor
- ePDM‑02: with ePRO battery monitor (state of charge)
- ePDM‑03: with Simarine SC303 main shunt, SCQ50 quad shunt, and PICO panel display
- Inputs/outputs: main positive input; midi and blade fuse holders for additional loads; negative bus bar
- Applications: 4WD canopies, caravans, camper trailers, and commercial work vehicles
