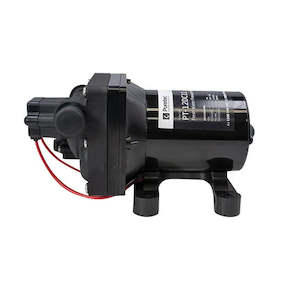

Caravan RV DC Diaphragm Pump 12V 3.0- 11.3LPM 17-60PSI

The PT-12DC11 Pump is designed for caravan and RV fresh water applications. It operates on 12V, providing 379 kPa with a flow rate of 11.3 LPM. Features

- Ordering Code: PT-12DC11
- Dimension: (H) 202.5 mm x (D) 111 mm x (W) 125 mm
- Priming Capabilities: 1.8 metres suction lift
- Voltage: 12V
- Max Draw: 7A
- Maximum Temperature: 60°C
- Maximum Pressure: 55 psi (379 kPa)
- Flow Rate: 11.3 Lpm
- Connection: ½" BSP
- Warranty: 2 years^
- Self-priming and run dry safe
- Quiet operation and on-demand use
- Industry-standard mounting pattern
- Rubber mounting-base
- Internal bypass technology reduces cycling
