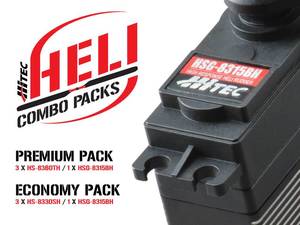

Heli Combo Pack, Economy Pack, Hitec

ONLY 1 SET AVAILABLE AT THIS CLEARANCE PRICE

Hitec - 34011

When it comes to arming your RC helicopter with the very best in servo technology, depend on Hitec.

Hitec have combined their high resolution, high response helicopter servos in convenient packages to ensure you are equipped with what you need to get off the ground fast!

This is the ultra-efficient ECONOMY PACK which includes three speedy, steel gear HS-8330SH servos and the ultra-fast, karbonite HSG-8315BH tail rotor servo.

Pick your pack and throttle up!
Heli Combo Pack Servo Specifications Performance Specifications HS-8315BH HS-8330SH HS-8360TH Operating Voltage Range (Volts DC) 6.0V ~ 7.4V 6.0V ~ 7.4V 6.0V ~ 7.4V Speed (Second @ 60°) 0.05 ~ 0.04 0.09 ~ 0.07 0.08 ~ 0.07 Maximum Torque Range oz. / in. 60 ~ 74 139 ~ 181 187 ~ 229 Maximum Torque Range kg. / cm. 4.3 ~ 5.3 10.0 ~ 13.0 13.5 ~ 16.5 Current Draw at Idle 10 mA 10 mA 10 mA No Load Operating Current Draw 300 mA 500 mA 390 mA Stall Current Draw 3,150 mA 5,200 mA 4,800 mA Dead Band Width< 1 µs< 1 µs< 1 µs Physical Specifications HS-8315BH HS-8330SH HS-8360TH Dimensions (Inches) 1.57 x 0.79 x 1.50 1.57 x 0.78 x 1.46 1.57 x 0.79 x 1.50 Dimensions (Metric) 40.0 x 20.0 x 38.0 40.0 x 20.0 x 37.0 40.0 x 20.0 x 38.0 Weight (Ounces) 2.12 2.33 2.4 Weight (Gram) 60.0 66.0 68.0 Circuit Type HR Digital HR Digital HR Digital Motor Type Coreless Metal Brush Coreless Metal Brush Coreless Metal Brush Gear Material Karbonite Steel Titanium Bearing Type Dual Ball Bearing Dual Ball Bearing Dual Ball Bearing Output Shaft (type / Ømm) H25T H25T H25T Case Material Plastic / Aluminum Plastic / Aluminum Plastic / Aluminum Dust / Water Resistance Splash Proof Splash Proof Splash Proof Connector Gauge (AWG) / Strand Count 22 / 80 20 / 80 20 / 80
