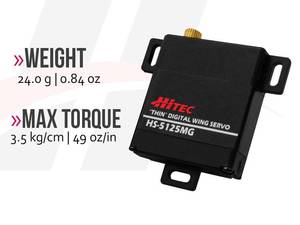

HS-5125MG Slim Metal Gear Wing Servo, Hitec

ONLY 1 AVAILABLE AT THIS CLEARANCE PRICE

Hitec - 35125S

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability.

Features

- Super Thin Programmable Digital Wing Servo
- Strong Metal Gears
- Dual Ball Bearings
- Standard Programmable Digital Circuit for Greater Holding Power
- 10mm Design Fits Perfectly in Slim Aircraft and Glider Wings
Programmable Functions

- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
HS-5125MG Servo Specifications Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60°) 0.17 ~ 0.13 Maximum Torque Range oz. / in. 42 ~ 49 Maximum Torque Range kg. / cm. 3.0 ~ 3.5 Current Draw at Idle 3 mA No Load Operating Current Draw 230 mA Stall Current Draw 1,200 mA Dead Band Width 1 µs Physical Specifications Dimensions (Inches) 1.18 x 0.39 x 1.33 Dimensions (Metric) 30.0 x 10.0 x 34.0 Weight (Ounces) 0.84 Weight (Gram) 24.0 Circuit Type G1 Programable Digital Motor Type 3 Pole Metal Brush Ferrite Gear Material Nylon Bearing Type Dual Ball Bearing Output Shaft (type / Ømm) Micro 23 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 25 / 40 Radio Control Applications Parkflyer N / A Sport Plane 42 - 50 oz. Sailplane 3 meter 3D Performance 42 - 50 oz. Scale N / A Electric Helicopter N / A Gas Helicopter N / A On Road N / A Monster Truck N / A Buggies N / A Truggies N / A Short Course / Truck N / A Crawlers N / A Sail Boat N / A Power Boat 1/16th
