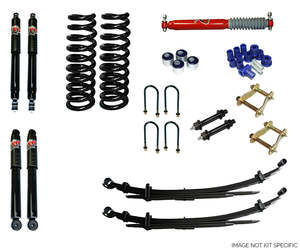

Lift Kit - Toyota Land Cruiser 76 Series – GD76R Wagon 09/2023+ - 50mm

EFS suspension kit with 50mm lift for the Toyota Land Cruiser 76 Series GD76R 2.8 Litre Wagon 09/2023 onwards models.

Buy the entire lift kit or select the individual components you need.

Suspension lift kits are designed to maintain factory rake. Feel free to to discuss options for your vehicle. Fitment Notes Rear Suspension

- Rear Springs - As a general rule, spring loading will ideally be within 150kg of constant rating for acceptable ride quality. E.g. for a 300kg constant spring, you would want 150kg of load.
- Rear Springs - 350kg leaf option available on request. EFS Shocks

EFS provide a range of affordable, quality shock absorbers to suit all types of 4WD, whether you are an on-road only user, off the beaten track tourer or serious offroader. EFS Shock Absorbers are vehicle and height specific. "Not a one shock suits all approach".

General Specifications

- Long Travel Design - Maximises wheel articulation
- Twin Tube Construction - Increased control of the spring during rebound and compression cycles
- Quality Hardened Chromed Piston Rods Longer service life, and greater lateral strength
- 5mm Outer & Inner Wall Thickness Greater durability and strength
- Dynamic Motion Control Valve - Adjusts to different road & off road conditions
- Polyurethane and rubber bushes – High quality elastomer and rubber mounting bushes to suit specific applications EFS MXP Monotube Shocks

- 2.5" monotube design with floating piston for consistent, reliable damping in all conditions
- High-strength 22mm piston rod built for durability and performance
- Up to 30 rebound adjustment settings to fine-tune ride comfort or off-road control
- No reservoir design for simpler installation and cleaner fitment
- Direct bolt-in replacement for OE suspension - no modifications required
- Engineered for extreme ride control and precision handling. EFS Coil Springs

EFS Coil Springs are manufactured under a strict quality control system with the use of quality Spring steel. This ensures you are purchasing a high-quality product that is backed by a three year/100,000km warranty.

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm and also a variety of spring rates to suit different applications - Towing, load bearing accessories, increased ride height and off-road competition.

Specifications

- Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.
- Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.
- Powder Coated - To resist corrosion & to protect the spring steel from minor damage. EFS Leaf Springs

Transform your rigid leaf sprung vehicle into a comfortable off-road performer with EFS leaf springs. Designed as a comfort leaf spring that incorporates special features that give the driver a comfortable ride on road and increased control off road, along with increased articulation and clearance.

Specifications

- Manufactured from high-quality grade alloyed carbon spring steel
- Tapered Leaf Ends to reduce the inter-leaf friction and to improve pressure distribution in the load bearing area
- Bolt Clip Liners to reduce noise and friction
- Inter-Leaf Graphite Coating and Leaf Insert Pads to further reduce friction
- Shot Peened & Scragged Tested to reduce stress and promote longevity
- Bolt Clips & Military Wraps to prevent leaf spread and provide safety
- Warranty - 3 year / 100,000 Km Warranty
- Available in 30mm to 80mm raised heights with a slight increase in spring rates over the original equipment. EFS U Bolts

Made from quality carbon steel with rolled threads to increase strength due to uniform grain finish and powder coated for protection against corrosion.

Deep nuts are supplied for safety and strength with flat washers to provide a smooth contact surface area to reduce plate friction. EFS Bush Kits

EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength and durability. EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness and grease channels for increased distribution of lubrication properties. EFS Shackle Pins and Swing Shackles

EFS Shackle Pins and Swing Shackles are engineered to be stronger than the original equipment and greaseable for ease of service.

The products are then case hardened and gold cadmium plated or black oxided
