Nomad Electric Winch - 12v or 24v (Build Your Own)

Build your own winch products are built to order at Red Winches in the UK. Please allow around six months from the date of order. Feel free to to confirm lead time or to discuss configuration options before ordering.

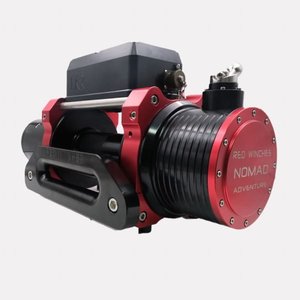

RED Winches Nomad low mount electric 4x4 recovery winch.

Engineered to meet military standards and CE marked, the Nomad Winch has undergone extensive design and testing to ensure reliability and performance. Performance Data

Available with 3 Gearing Options

The NOMAD Winch offers three gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds: Overland Gearing

- Pulling Capacity: 4,000kg (8,800 lbs)
- Average Line Speed: 8.8 m/min (28.7 ft/min)
- Drum RPM – 41 Adventure Gearing

- Pulling Capacity: 5,500kg (12,000 lbs)
- Average Line Speed: 6 m/min (19.6 ft/min)
- Drum RPM – 28 Titan Gearing

- Pulling Capacity: 7,500kg (16,500 lbs)
- Average Line Speed: 3.6 m/min (11.9 ft/min)
- Drum RPM – 11.9 Durable and Easy to Service Gearbox

The gearbox is engineered for maximum strength, power, and ease of maintenance. Manufactured from chromium molybdenum steel and case-hardened for superior strength (up to 1230 N/mm²), it ensures exceptional durability. The gearbox uses semi-liquid grease rather than oil, making it easier to service, whether in the workshop or during an overlanding adventure.
