Lift Kit - Toyota Land Cruiser 80 Series HZJ80 | FZJ80 (Superior monotubes) - 75mm

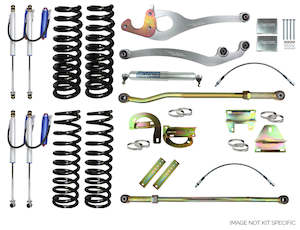

This custom suspension lift kit includes EFS4x4 and Superior Engineering components to deliver a 75mm lift for the Toyota Land Cruiser 80 Series HZJ80 and FZJ80 models.

Suspension lift kits are designed to maintain factory rake. Feel free to to discuss options for your vehicle. Fitment Notes Rear Suspension

- Rear Springs - 300kg coil springs (TLC-113HL4E) must have constant load at all times or will sit high. Certification

Some vehicle modifications require LVVTA Certification. The following products in this suspension kit may require LVVTA Certification:

- Radius arms (in most instances)
- Adjustable panhard rod

This information is a guide-only and we recommend you contact your local certifier in all cases where certification may be required. EFS Coil Springs

EFS Coil Springs are manufactured under a strict quality control system with the use of quality Spring steel. This ensures you are purchasing a high-quality product that is backed by a three year/100,000km warranty.

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm and also a variety of spring rates to suit different applications - Towing, load bearing accessories, increased ride height and off-road competition.

Specifications

- Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.
- Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.
- Powder Coated - To resist corrosion & to protect the spring steel from minor damage. Superior Engineering Monotube Shocks

Superior Engineering Superflex Radius Arms

Superior Engineering Adjustable Panhard Rods

These heavy-duty panhard rods from Superior Engineering are fitted with genuine Toyota bushes, manufactured from 32mm OD High Tensile Bar, and have a lifetime warranty against bending.

Adjustable panhard rods are needed when performing any lifts over 3 inches. They are adjusted so as the axle sits directly underneath the chassis. Superior Engineering Sway Bar Extensions

Manufactured from high grade aluminium, these sway bar extensions eliminate the need to remove the sway bars when performing lifts, ultimately making the vehicle drive far better with the sway bars still fitted.
