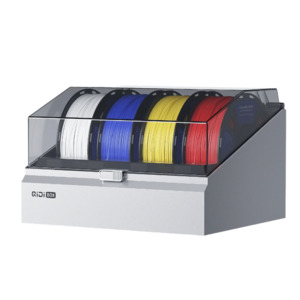

PLUS 4 QIDI Box AMS

QIDI Box for the PLUS 4 3d printer

NOTE: This AMS is not compatible with the Q2 as it is slightly modified to suit Unleashing Colours, Break Material Limits
16-Color Multi-Material via parallel connection

Chain 4 QIDI Boxes to unlock

16-material freedom Dual Gears

From tough composites to vibrant colors — no compromises 65°C Drying

Real-time drying while Printing NFC

NFC Intelligent Recognition
What can QIDI Box do? QIDI Box - Your Personal Color Partner

DIYers, Families, Designers - And You QIDI BOX Technical Specification Item Specification Body Dimensions 357 300 234 mm Package Dimensions 360 400 295mm Net Weight 4.35kg Gross Weight 6.15kg Housing Material ABS/PC Number of Slots 4 Expandable number ≤4 Filament Channel Indicator Lights 4 individual indicator lights, one for each filament channel Feed Gear Hardened Steel Dual Gears Filament Feeding Motors 4 × 42-stepper motors Exhaust Vent Manual Printing Filament Supported PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS,TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF，PPS-CF，PET-CF/GF Filament Not Supported TPE, Generic TPU, PVA (damp), BVOH (damp), TPU 95A, QIDI PAHT-CF and other overly rigid or overly flexible filaments Filament Diameter 1.75 mm Spool Dimension Width: 50 mm-72 mm
Diameter: 195 mm-202 mm RFID Identification Supported Filament Monitoring Supports tangle detection, clog detection, and run-out detection Auto Filament Refill Automatically switches to backup spool when filament runs out Multi-color Printing Supported – up to 16 colors (requires additional QIDI BOX and accessories, sold separately) Filament Drying Supported and Support Simultaneous Drying and Printing Drying Maximum Temperature 65℃ Filament Supported PLA、ABS、ASA、PA、PC、PET、PETG、PPS、PLA Wood Sealed Storage Supported Temperature and Humidity Detection Supported, Real-time Temperature and Humidity can be Displayed on the Screen and QlDl Studio. Desiccant Storage Supported Power Supply Voltage 110V / 220–240V AC, 50/60Hz (region-specific models available) Max Rated Power 245W
