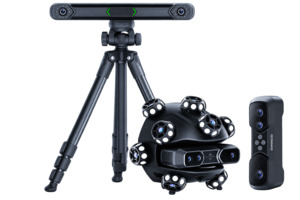

NEW - EinScan Trak- Wireless Marker-Free Tracking System
EinScan Trak is the world's first wireless, dual-form, marker-free tracking system, delivering a portable, professional 3D digitization solution for reverse engineering, cultural heritage preservation, automotive customization, and large-object digitization.
Key Features
Marker-Free Tracking
4 m Wireless Tracking Range
Marker-free laser & IR scanning with texture
Up to 5.5 Hours Battery Life
Portable Design
True-Colour Scanning
Two Scanning Modes
Up to 0.05 mm Resolution
2.9 Million Points/Second
19 19 Crossed Laser Lines
5MP Texture Camera
Outdoor Ready
One System, Two Work Modes
Choose the right setup for your applications—detachable, easy to calibrate,and ready with one-click startup. Enables seamless switching and flexible combination of tracking mode and handheld scanner mode, supporting real-time adjustment during scanning and cross-mode resolution merging.
Wireless Freedom, Higher Efficiency
Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
A router is required and included as standard.
All-Scenario Marker-Free 3D Scanning
Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.
Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.
Three Scanning Modes for Diverse Needs
19 19 crossed laser lines acquire high-quality data from large objects quickly, delivering workflow efficiency and scanning flexibility.
7 parallel laser lines capture lines and sharp edges on automotive components with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.
Adaptable to Every Task
- Ideal for Various Materials
Scan black and reflective surfaces (e.g., car rims) effortlessly without any data loss.
- Multi-Environment Adaptability
Reliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.
High-definition. True-color.
5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research, and other fields.
For Streamlined Reverse Engineering
EXModel Series is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps
- Learn more For Precise Measurement
EXMeasure is a measurement software designed to work seamlessly with EinScan Trak Series, supporting digital dimensional analysis from scan data to verification.
Technical Data
- Volumetric accuracy Up to 0.1 mm
- High-speed scan Included (19 19 crossed laser lines)
- Detailed scan Included (7 parallel laser lines)
- Deep pockets scan Included (single line)
- Resolution 0.05 ~ 10 mm
- Scan Speed 2,630,000 points/s
- Max. FOV Tracking mode: 4796 x 4174 mm @4000mm
Handheld scanner mode: 547 x 463 mm @500mm
- Net weight Tracker: 1.02 kg
Spherical scanner: 1.46 kg
Handheld scanner: 0.48 kg
- Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
