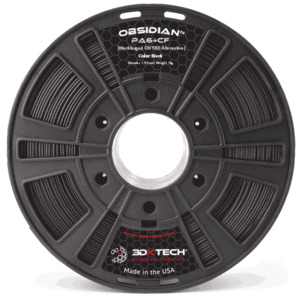

OBSIDIAN PA6+CF [MARKFORGED ONYX ALTERNATIVE] 1Kg 1.75mm rolls

Obsidian™ PA6 CF filament was formulated to be a lower-cost drop-in Markforged Onyx

1kg of Obsidian vs 750g Markforged Onyx

Alternative to ONYX suitable for all Markforged printers and DIY machines.

IMPORTANT: 3DXTech recommend to dry this filament on 1st use as it can be very hydroscopic even if new.

- Drying Instructions: 90°C for 4 hours if the filament exhibits signs of moisture

We developed this material after extensive analysis and testing on our own in-house Markforged printer and many outside beta testers.

The result is a seamless printing experience that produces parts with an outstanding appearance and excellent mechanical properties.

Made using premium high-modulus carbon fiber and PA6 copolymer, Obsidian™ is an excellent alternative to Onyx™ that allows our customers to save money when using your Markforged printer.

Don’t have a Markforged printer? That’s no problem – Obsidian™ is also compatible with all non-Markforged printers that are suitable for printing PA6 CF.

Take advantage of the excellent strength, stiffness, and appearance of this specialty material without over spending on Markforged Onyx™.

Technical data sheet for this product here Benefits of Obsidian™ PA6 CF Markforged Onyx Alternative :

- Drop-in for Onyx™ without any changes required to print settings
- >30% savings vs. Markforged Onyx™
- Excellent strength and stiffness
- Resistant to aliphatic hydrocarbons (oil/gas/lubricants)
- Superior dimensional stability (low warp/shrink/CTE)
- Compatible with Markforged FX20, X7, X5, X3, Mark Two, Onyx Pro, and Onyx One printers Filament Specifications:

Diameter: 1.75mm /- 0.05mm

1000g rolls in BLACK only Print Recommendations:

Obsidian™ was formulated to be a drop-in for Onyx™ without any changes to the print settings.

3DXTech Recommended Print Settings for Non-Markforged Printers:

- Extruder: 265-285°C
- Bed Temp: 90-110°C
- Nozzle: We currently recommend a hardened steel nozzle
- Bed Prep: Magigoo Bed Prep and 3DXTECH Polyimide Tape gives us the best results
- Heated Chamber: Recommended

Formtech's Settings for what I have tweaked for my machines ( Non MF)

- Extruder : 280°C - I run hot and seems to work very well
- Bed: run at 110°C- Once again stops any lift off and keeps plastic under control
- Brim: YES, helps with warping later on 10mm brim 1st layer
- Perimeter walls 3min and top and bottom 4 min
- Magigoo PA ( Nylon) on clean well washed G11 bed
- Chamber warm but not hot, ambient temp from the bed

Drying Instructions: 90°C for 4 hours if the filament exhibits signs of moisture
