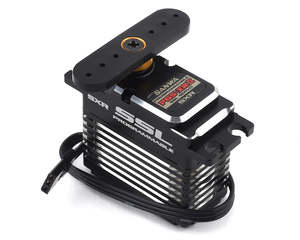

Sanwa PGS-XR II High Speed Brushless Servo (High Voltage)

Features:

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
SSL-COMPATIBLE PROGRAMMABLE SERVO: Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
PGS SETTING GEAR-COMPATIBLE
SUPER RESPONSE (SSR) MODE-COMPATIBLE
HIGH RESPONSE (SHR) MODE-COMPATIBLE
Li-Po 2 CELL-COMPATIBLE
HIGH TORQUE TYPE
BRUSH LESS MOTOR
FULL ALUMINUM CASE
FULL METAL GEAR (Strengthening Gears)
ALUMINUM HEAT SINK
Black Harness
Programmable Servo to be compatible with SSL & Telemetry at Launch
Setting Adjustment by wireless from Radio
Setting Adjustment to connect Servo with Setting Gear
Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
Initial Setting on Setting Gear is necessary.
Programmable Settings:
SSL-CH (SSL Channel Setting)
STRETC (Stretcher Adjustment)
BOOST (BOOST Adjustment)
D-Band (Dead Band Adjustment)
MV-MID (Middle Torque Adjustment)
MV-END (Later Torque Adjustment)
BREAK(Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
PGS-Servo Explanation
Specifications:
Speed:
@7.4V: 0.09 sec/60 (7.4V)
@6.0V: 0.11 sec/60 (6.0V)
Torque:
@7.4V: 240.25 oz-in (17.3 kg-cm)
@6.0V: 194.42 (14.0 kg-cm)
Dimensions: 40.5x20.5x38.7mm
Weight: 72 g
