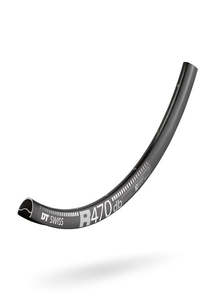

DT SWISS - R 470 DISC BRAKE RIM

The jack-of-all trades of road rims: light, wide and with an ideal price/performance ratio. The R 470 works perfectly with wide tyres and will deliver many unforgettable rides thanks to its reliability.

- Material: EN AW-6061 T6 Aluminium
- Brake interface: Disc
- Weight: 450 grams (tolerance of the net weight indication /- 5%)
- Rim height: 23 mm
- Rim diameter: 622 mm (29" / 700C)
- Inner width: 20 mm
- Outer width: 24 mm
- Reference diameter ERD: 596 mm
- Decal type: Vinyl
- Spoke holes: 24 / 28 / 32
- Bore type: Non-eyelet
- Rim joint: Sleeve joint
- Recommended system weight max.: 120 kg
- ASTM classification: 2
