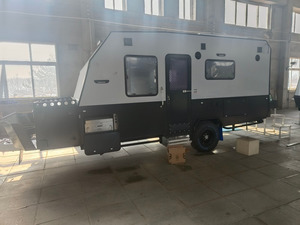

Explorer-16 Semi-offroad

Caravan Specifications Basic Information

Body Size: 4868mm (L) × 2201mm (W) × 2070mm (H)

Interior Dimensions: 4801mm (L) × 2134mm (W) × 1960mm (H)

Overall Size: 7777mm (L) × 2300mm (W) × 3114mm (H)

ATM: 3000kg

GTM: 2820kg

Tare Mass: 2150kg

Maximum Load: 600kg

Chassis Material: Iron tube hot-dip galvanized tube

Body Structure: Fiberglass Aluminium frame XPS Fiberglass

Floor Structure: Plastic honeycomb board with PVC floor adhesive

Ground Clearance (Drawbar): 548mm

Checker Plate Height: 590mm Sleeping

Sleep Capacity: 3 people

Double Bed Size: 1900mm × 1500mm

Sofa Bed Size: 1540mm × 800mm

Mattress Material: Sponge Latex pad Living & Kitchen Area

Kitchen Area Size: 1540mm × 800mm

Table: Pneumatic lifting table

Sofa Seating Capacity: 4

Sofa Material: Black artificial leather Tow System

Hitch: New Zealand standard

Safety Chains: 2 Axle & Suspension

Suspension: Leaf spring suspension

Axle Type: Single fixed axle, 60-round steels

Braking: 12" electric brakes with manual handbrake

Wheel Hub: 16" aluminium alloy

Tyres: 265/75R16 Water System

Fresh Water Tanks: 2 × 95L PE tanks

Grey Water Tank: 125L

Water Heater: 14L Truma

Water Pump: 12V, 11.3 LPM

Water Inlet: PE water inlet

Bathroom: One-piece fiberglass

Faucets: Hot and cold

Sewage Valve: Included

Shower: External box with hot and cold water

Additional Taps: External single-cooling brass faucet

Sink: With cover Gas System

Gas Bottle Rack: 2 × 9kg

Gas System: All copper pipe system Electrical System

Front Connector: 7-core flat connector

Anderson Plug: 50A

Emergency Brake System: Included

Battery: 1 × 200AH Lithium

Inverter: 12V to 240V, 2000W sine wave with charging

Solar Controller: 20A

Solar Panels: 3 × 100W (12V each)

Power Monitoring: Digital electricity meter

Water Level Monitoring: Fresh and grey tank level display

External Mains Socket: 220V–240V, 16A

Charging Cable: 10m

Circuit Breakers: 240V and 12V

Power Outlets: 5 × 110–240V, 4 × USB

External Outlets: 1 × 240V, 1 × USB, 1 × Cigarette lighter

Lighting: LED

Reversing Camera: Included Electric Facilities

Fridge: Thetford 152L

Cooktop: Thetford four-head burner (oven upgrade available)

Toilet: Thetford

Microwave Oven: Included

Extractor Fan: Kitchen

Air Conditioner: Dometic B3200 (upgrade available)

Audio: MP3 player, FM radio antenna

Speakers: 2 interior, 2 waterproof exterior

TV Antenna: Digital

Bathroom Ventilators: 2

Skylight: 700mm × 500mm with integrated lights

Windows:

2 × 700mm × 800mm

1 × 900mm × 450mm

1 × 700mm × 400mm

1 × 450mm × 500mm

Door Handle: With LED light

External Folding Table: 1

Safety Devices: Smoke detector, gas alarm

Heating: Diesel heater Awning

Manual Awning with Poles: 3000mm (L) × 2500mm (W) Accessories

Drawbar: Welded, 150mm × 50mm × 3.0mm square tube

Jockey Wheel: Middle lifting type

Stabiliser Jacks: 4

Level Gauge: Bubble level

Fire Extinguisher: 1 × 1kg

Bathr
