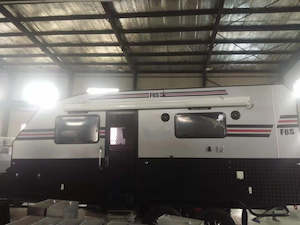

Explorer-17DB Caravan

Caravan Specifications

Basic Information

- Trailer Size: 7777mm (L) × 2300mm (W) × 3114mm (H)
- ATM: 3000kg
- Tare Mass: 2620kg
- Drawbar: 150mm x 50mm x 4mm
- Tow ball weight: 240kg
- Chassis Material: Iron tube hot-dip galvanized tube
- Body Structure: Aluminium composite panel wall, Solid fiberglass roof, underbody deadener protecting frame

Sleeping

- Sleep Capacity: 4 people
- Mattress Material: innerspring queen mattress foam bunk beds

Living & Kitchen Area

- Table: Pneumatic lifting table
- Sofa Seating Capacity: 4
- Sofa Material: Black artificial leather

Tow System

- Hitch: New Zealand standard off-road hitch
- Safety Chains: 2

Axle & Suspension

- Suspension: Independent suspension system
- Axle Type: Dual axle,
- Braking: 12" electric brakes with manual handbrake
- Wheel Hub: 16" aluminium alloy
- Tyres: 265/75R16

Water System

- Fresh Water Tanks: 2 × 110L
- Grey Water Tank: 100L
- Water Heater: 14L Truma
- Water Pump: 12V, 11.3 LPM
- Water Inlet: 2x water inlet
- Faucets: Hot and cold
- Sewage Valve: Included
- Shower: External box with hot and cold water
- Additional Taps: External single-cooling brass faucet
- Sink: With cover

Gas System

- Gas Bottle Rack: 2 × 9kg
- Gas System: All copper pipe system

Electrical System

- Front Connector: 7-core flat connector
- Anderson Plug: 50A
- Emergency Brake System: Included
- Battery: 3 × 100AH
- Inverter: 12V to 240V, 2000W sine wave with charging
- Solar Controller: 20A
- Solar Panels: 2 × 150W (12V each)
- Power Monitoring: Digital electricity meter
- Water Level Monitoring: Fresh and grey tank level display
- External Mains Socket: 220V–240V, 16A
- Charging Cable: 10m
- Circuit Breakers: 240V and 12V
- Power Outlets: 5 × 110–240V, 4 × USB
- External Outlets: 1 × 240V, 1 × USB, 1 × Cigarette lighter
- Lighting: LED

Electric Facilities

- Fridge: Thetford 152L
- Cooktop: internal 2-burner gas stove, External slide-out stainless-steel kitchen with sink, draining board prep bench, Deluxe 4-burner gas stove regulator.
- Toilet: Thetford
- Extractor Fan: Kitchen
- Air Conditioner: Dometic B3200 (upgrade available)
- Audio: MP3 player, FM radio antenna
- Speakers: 2 interior, 2 waterproof exterior
- TV Antenna: Digital
- Bathroom Ventilators: 2
- Door Handle: With LED light
- Heating: Diesel heater

Awning

- Electric Awning with Poles: 3000mm (L) × 2500mm (W)

Accessories

- Jockey Wheel: 10" swing up and lockable
- Stabiliser Jacks: 4
- Level Gauge: Bubble level
- Fire Extinguisher: 1 × 1kg
- Storage: Front box
- Bumpers: Side and rear bumpers
- Stone Guard: Included
