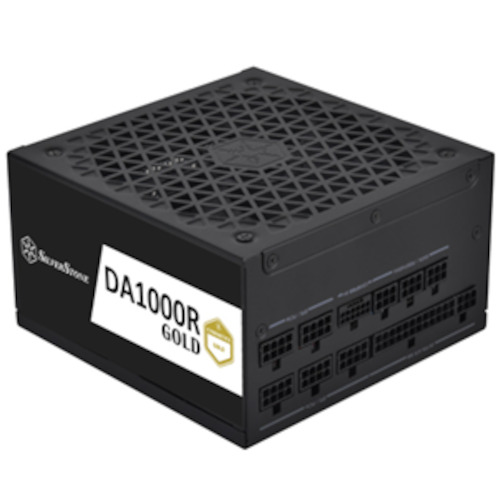

1000w Gold Gen5 Modular – GLI Computers

SST-DA1000R-GM

1000W PCIE GEN5, fully modular, efficiency Cybernetices GOLD certification, support ATX 3.0 standard

Specifications Colour Black Max. DC Output 1000W Power Density 517W per liter Load Range Output 3.3V 5V 12V 5VSB -12V Max.(Amps) 22A 22A 83.5A 3A 0.3A Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% 5/-7% ±5% ±5% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV Combined 3.3V & 5V 120W Combined 12V 1000W Input Voltage 90 ~ 264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF>0.9 at full load) Efficiency ≥87% & <89% overall efficiency MTBF 100,000 hours Operating Temperature 0°C ~ 50°C Protection Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation Connectors 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12 4-Pin 12VHPWR connecto...
