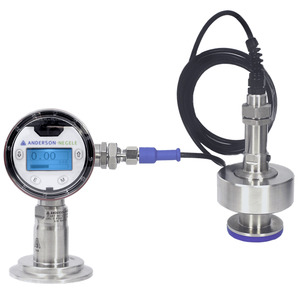

Anderson-Negele D3 Differential Pressure and Level Sensor

SKU D3 Brand Anderson-Negele Tags Beverage, Dairy, Food, Pharmaceutical

Highly versatile differential pressure sensor that is perfect for reading differentials across tanks and filtration systems.

Easy to use graphical interface with on device setup available

Both pressure stems can be remote to have an easily accessible display unit

Application

Monitoring of Differential Pressure & Level in vessels and across filtration systems, reading in bar/psi with process temperatures up to 110°C or 135°C for 60 minutes. Measuring Principle

Each sensor uses an internal piezoelectric signal converter and a temperature sensor to measure the pressure and temperature of the capillary fill.

Hydrostatic level measuring principle for level Process Connection

G1" Hygienic, TriClamp, Milk Coupling, SMS Liner (Female), Anderson-Negele Proprietary CPM, E&H Universal Adaptor (Short/Long) Electrical Connection

M12 (IP69K) or M16x1.5 Cable Gland (IP67) From

$2,700.00 ENQUIRE<...
