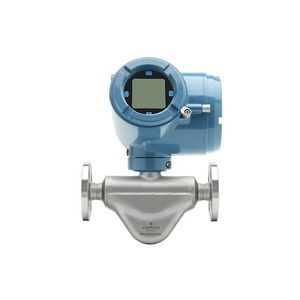

Micro Motion Coriolis Mass Flow and Density Meter Flow Meter, CIP Control

SKU Micro Motion Coriolis Mass Flow Brand Anderson-Negele Tags Beverage, Dairy, Food

Emerson’s Micro Motion H-Series and G-Series Coriolis Flow and Density Meters deliver superb measurement with exceptional flow and density performance as well as outstanding reliability in a compact hygienic design for use in hygienic process control environments. A wide offering of transmitters ensures maximum compatibility with any control system. Process Connection Tri-Clamp - DIN 11851 - IDF - DIN 11864 Insertion length H-Series: 404 mm (H025) up to 881 mm (H300) G-Series: 206 mm (G025) up to 584 mm (G300 Wetted material 316L stainless steel; 32 Ra finish (0.8 μm) - 316L stainless steel; 15 Ra finish (0.4 μm) Measuring range 1.336…238.499 kg/h - 50…8.740 lb/min Accuracy Mass / Volume up to ±0,05% Density up to ±0,5 kg/m3 Available versions Compact - Remote Temperature range process in °C: -100…204 °C (Remote) in °F: -148…400 °F (Remote) Operating pressure max. 10...
