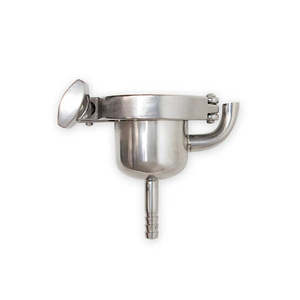

Create+ Vented Collection Cup (50710)

The Create Vented Collection Cup is designed for use with 2" tri-clamp compatible distilling systems. The stainless-steel Vented Collection Cup integrates into a modular distilling system, facilitating the secure connection of distillate collection tubing while allowing safe venting of pressure during the distillation process.

Key features:

- Connects to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone

INSTRUCTIONS: Insert Collection Cup into your distilling system, ensure the vent weld is at least horizontal so that distillate flows out of the barbed tube, place a silicone gasket in the tri-clamp connection and secure with a tri-clamp.

CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.

CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.

CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.

- Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
- 2" Tri-clamp
- 2" Silicone Gasket

- Dimensions: H 11.3 cm x W 7.1 cm x D 5.1 cm
- Vent port/tube Ø12 mm
- Barbed tube Ø10 mm
- Weight: 0.170 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

- A total column & condenser height up to 1.1 m from the lid or dome.
- A total column & condenser weight up to 11kg, including up to 2kg of off-center weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160mm (6") to the main column.

We recommend external support if:

- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-center weight.
- If the column & condenser is noticeably leaning.
