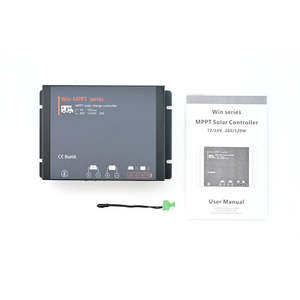

Solar Charging Kit | 20A MPPT Controller 12V|24V + Wiring Kit

This 20A solar charge controller is based on an advanced maximum power point tracking (MPPT) with a conversion efficiency up to 98%. A MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers.

Together with the Alligator Clips and the 3m MC4 extension cable, it is an easy plug-and-play system with a solar panel and your car or RV house battery. It's easy to choose your battery type and the charging mode in the App via a Bluetooth connection.

20A MPPT General info:

- Rated Charging Current: 20A
- System Voltage: 12/24V automatic recognition
- Max PV Input Power: 260W on 12V / 520W on 24V
- Max Voltage on PV(25℃): 50V
- Battery Type: Gel (default) - AGM - Deep Cycle - Liquid - Lithium
- 4 Charging Modes: Fast - Boost - Equalization Float
- Communication: Bluetooth via Skywise App (Android only)
- Weight: 700g
- Waterproof: IP54

WHAT'S IN THE BOX?

- 1 x 20A MPPT charge controller 12V24V
- 1 x Alligator Clips with 30cm cable
- 1 x MC4 connectors with 3m cable
- Manual

Warranty: 1 year manufacturing warranty

Download User Manual here:

Win500 MPPT 20A 12V24V
