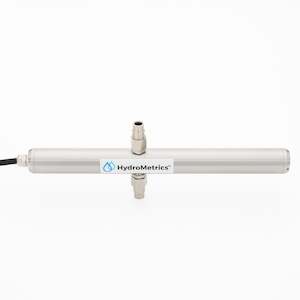

HydroMetrics GW50FC™ Optical Flow-Cell Nitrate Sensor

The HydroMetrics GW50FC™ nitrate sensor is designed for situations where a suitable bore is not available to install a nitrate sensor. Water can be pumped from the water source and piped directly through the measurement cell in this sensor.

Common uses:

- Drinking water and stock water monitoring.
- Checking and blending to meet potable water levels for regulated water supply.
- Monitoring of wastewater streams before discharge to land or trade waste; for example, treated wash water from a milk processing plant.
- Influent streams to carbon-based bioreactors.
Note: Due to the likelihood of increased dissolved organic carbon the GW50FC sensor is unlikely to be suitable for outflow from the bioreactors without appropriate pre-filtering.
- Regional groundwater monitoring relying on existing production bores.

Comes with:

- Comes with a hard plastic protective carry case.

Specifications:

- Measurement technology (light source): Xenon flash
- Measurement principle: UV Absorbance
- Measurement cell: 8 mm Parameter NO3-N
- Measurement range: 0 – 50 mg/L (without measurement cell alteration)
- Measurement accuracy: /- 5% 0.3 mg N/L (against standards)
- Turbidity compensation: Yes
- Data logger: ~ 16 GB internal storage
- Measurement interval: ≥ 1 min
- Housing material: 316 stainless steel
- Dimensions (ø x L): 42.2 mm x 455 mm
- Weight: 3.44 kg (including 10 m of cable)
- Interface: SDI-12 / Modbus RTU / Serial
- Power consumption:< 100 mW
- Power supply: 11.5 – 15.5 V
- Guarantee: 1 year
- Max pressure: 2.0 bar as standard

Download Operating Manual
