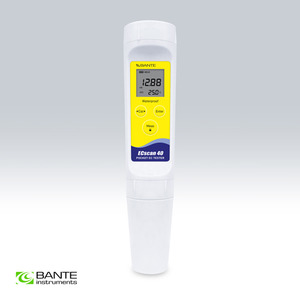

Bante ECscan40 Conductivity Tester
The Bante ECscan40 is a professional-grade multi-parameter pocket tester designed for accurate field analysis of Conductivity, TDS (Total Dissolved Solids), and Salinity.
Unlike basic pens that only measure one parameter, the ECscan40 is a true all-in-one solution. Equipped with a platinum-black sensor and a high-performance processing chip, it automatically switches ranges to provide precise readings from pure water (0.01 µS/cm) up to high-strength chemical solutions (20.00 mS/cm). Key Features Multi-Parameter Analysis
3-in-1 Measurement: Measures Conductivity, TDS, and Salinity in a single compact unit.
Auto-Ranging: Automatically selects the optimal measurement range for the detected sample, ensuring the best resolution without manual switching. High-Accuracy Sensor
Platinum Sensor: Utilizes a professional platinum-black conductivity cell (K=1) that provides linear, stable readings and resists polarization errors common in cheaper graphite sensors.
Automatic Temperature Compensation (ATC): Built-in temperature sensor corrects measurements to 25°C, eliminating errors caused by temperature fluctuations. User-Friendly Design
Dual-Line Display: Shows the measurement and temperature simultaneously.
Auto-Read Function: Automatically senses and locks the measurement endpoint when the reading stabilizes, removing the guesswork.
Adjustable TDS Factor: Allows you to customize the conversion factor (0.1 to 1.0) for specific pollutants or chemical types.
Ideal Applications
Water Treatment: RO system monitoring and boiler feed water.
Environmental: River, lake, and groundwater sampling.
Agriculture: Hydroponic nutrient solution strength (EC/TDS).
Aquaculture: Salinity monitoring for fish farming.
Education: Field trips and chemistry labs.
Technical Specifications
Parameter
Specification
Model
Bante ECscan40
Conductivity Range
0.01 µS/cm to 20.00 mS/cm (Auto-ranging)
TDS Range
0.01 ppm to 20.00 ppt (Max 20,000 ppm)
Salinity Range
0.00 to 10.00 ppt
Accuracy
±1% F.S.
Calibration
1 to 3 Points (Auto-recognition)
Temp. Compensation
0 to 60°C (Automatic)
Power Supply
2x 1.5V AAA Batteries (Replaceable)
Auto-Off
8 Minutes after non-use
IP Rating
IP54 (Splashproof)
Dimensions
185 × 40 mm
Expert Tip: Calibration Made Easy
The ECscan40 features Automatic Calibration. Simply dip the sensor into a standard solution (84 µS, 1413 µS, or 12.88 mS), and the meter will automatically recognize the value and calibrate itself. No screwdrivers or manual adjustments required.
In the Box:
1x Bante ECscan40 Tester
3x Conductivity Standard Solutions (Bottles)
1x Hard Carrying Case
Batteries (2x AAA)
