Niimbot M Series 42 x 30 mm Wrap Around Self-Laminating Hose/Cable Labels PP
- Abrasion Resistance: 5/5 (Print layer is fully encapsulated beneath the clear PP shield, preventing physical wear)
- Chemical & Oil Resistance: 5/5 (Polypropylene is highly hydrophobic and chemically inert to most industrial solvents)
- Flexibility & Wrap Integrity: 5/5 (PP has excellent fatigue resistance; it wraps tightly around small-diameter leads without cracking or memory-recoil)
- Legibility Retention: 5/5 (Protected against UV-induced fading and direct surface contamination) Material Science: The Polypropylene (PP) Advantage
Vinyl or paper labels can swell or degrade when exposed to lubricants, hydraulic fluids, or common solvents. Polypropylene is a semi-crystalline thermoplastic with high chemical resistance to both polar solvents and non-polar hydrocarbons.
Its low density and high flexural strength mean it bends effortlessly around tight curves—such as test leads, air hoses, screwdrivers, and calibration pens—without exhibiting the "structural memory" that causes stiffer plastics like PET to unwrap over time. Color-Coded Identification Strategies
To facilitate rapid diagnostic tracing and conform to international safety standards, these self-laminating labels are available in distinct visual formats:
- Standard White: Maximum contrast for high-density barcodes, device text, and QR codes on general signal cabling.
- Vibrant Yellow: Aligns with warning and high-voltage circuit identification protocols.
- High-Visibility Red: Instantly highlights critical safety lines, emergency circuits, shutdown triggers, or test boundaries. Operational Applications
1. Instrumentation & Signal Cables (AS/NZS 3000 / AS/NZS IEC 60079)

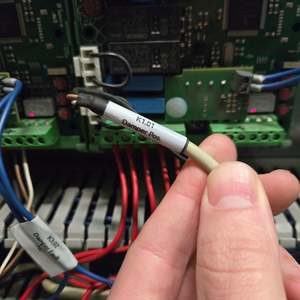

Designed for wrapping multi-pair signal cables, RTD leads, and transmitter wiring. The clear tail wraps tightly over the 30 x 15 mm print zone, protecting critical loop addresses from the corrosive elements found in wastewater, petrochemical, and manufacturing facilities.
2. Pneumatic Hoses & Hydraulic Brake Lines
The rugged PP construction handles the continuous pressure expansion and contraction cycles of pneumatic hoses and brake lines without tearing or losing adhesive grip.
3. Tool & Calibration Asset Identification (ISO 17025)
Perfect for marking high-use hand tools, screwdrivers, torque wrenches, and calibration pens. Because the text is protected beneath the PP lamination layer, constant friction from technicians' hands cannot wear away the asset tag or calibration ID. Hardware Compatibility
Fully compatible with Niimbot M-Series mobile printers (including the M2 field unit). The printer’s firmware automatically adjusts the thermal energy levels to match the direct-thermal top-coat of the PP media. This eliminates the operational footprint of ribbons and ink, allowing technicians to print and seal permanent, professional-grade tags directly at the point of installation.
