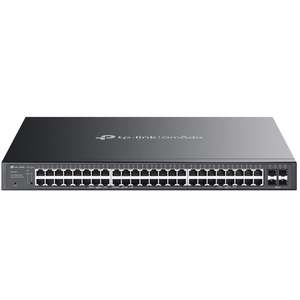

TP-Link SG2452LP Omada SDN 52 Port Gigabit Smart Switch w/32x PoE+

Omada 52-Port Gigabit Smart Switch with 32-Port PoE
- 32× Gigabit 802.3af/at PoE ports
- 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 230 W total PoE budget with up to 30 W PoE output per port
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design

HARDWARE FEATURES
Interface
- 32× 10/100/1000 Mbps PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4× Gigabit SFP Slots
Fan Quantity: Fanless
Physical Security Lock: v
Power Supply: 100-240 V AC~50/60 Hz
PoE Ports (RJ45)
- Standard: 802.3at/af compliant
- PoE Ports: 32 Ports (up to 30 W PoE Output per Port)
- PoE Power Budget: 230 W
Dimensions ( W x D x H ): 17.3×13.0×1.7 in (440×330×44 mm)
Mounting: Rack Mountable
Max Power Consumption: 304.5W (110 V/60 Hz) (with 230 W PD connected)
Max Heat Dissipation: 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected)
PERFORMANCE
Switching Capacity: 104 Gbps
Packet Forwarding Rate: 77.37 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control: Port/Flow-based Rating Limit
- Smoother Performance
- Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2 Features
- 16 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
L2 Multicast
- 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring†
- Abnormal Event Warnings†
- Unified Configuration†
- Reboot Schedule†
VLAN
- VLAN Group: Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
Access Control List
- Support up to 230 entries
- Time-based ACL
- MAC ACL
- IP ACL
- IPv6 ACL
- Combined ACL
- Rule Operation: Permit/Deny
- Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
Security
- IP-MAC-Port Binding
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access con
