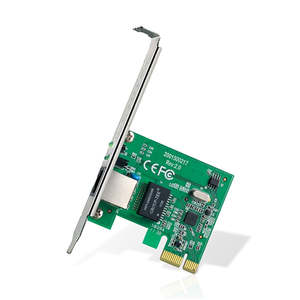

TP-Link TG-3468 32-bit Gigabit PCI Express Network Adapter

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
- DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware

HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP
Interface: 32-bit PCIe, 1 10/100/1000Mbps RJ45 port
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates:
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10 Link/Act, Duplex
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
- Network Adapter
- Resource CD
- Quick Installation Guide
- Standard PCI bracket
- Low profile bracket
System Requirements: Win 98SE/Me/NT/2000/XP/Vista/7,Linux/Novell Netware
Environment:
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
