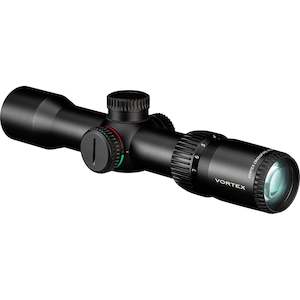

Vortex Crossfire II 2-7x32 Crossbow Red/Green Illumination
The 2-7x32 Crossfire II Crossbow Scope from Vortex features premium construction and comes with mounting rings, flip caps, and a neoprene cover—ready to go, right out of the box. Fully multicoated glass ensures optimal light transmission for a bright sight picture, and the waterproof and fogproof 30mm maintube has room for 160 MOA of elevation and windage adjustment at 1/2 MOA per click. Illuminated in your choice of red or green for visibility under all conditions, the XBR-2 reticle is designed for a 40-yard zero and has hold marks from 20 to 100 yards. The FPS number is on the magnification ring for compatibility with a variety of crossbows and setups, and the 16.4-57.5' field of view helps you find targets quickly. Optical Performance
- 2-7x magnification
- 32mm objective lens diameter
- Fully multicoated optics improve image brightness, clarity, and reduce glare
- Linear field of view: 57.5-16.4' at 100 yd
- Parallax correction: 75 yd XBr-2 Reticle
- Purpose-built for crossbows
- Second focal plane
- Designed for 40-yard zero
- Illuminated crosshair
- Hold marks below center out to 100 yards
- Choose green or red illumination to suit conditions Use and Handling
- 1/2 MOA impact point correction
- 160 MOA total elevation and windage adjustment
- 30 MOA travel per rotation
- FPS setting on magnification ring
- Fast-focus eyepiece, knurled ring for sure grip Construction Details
- 30mm single-piece maintube
- Aluminum construction
- Matte black anodized finish
- Impact-resistant
- Fogproof, nitrogen-filled
- Waterproof, sealed with O-rings Optics Magnification 2 to 7x Objective Lens Diameter 32 mm Field of View 2x: 57.5' @ 100 yd / 19.1 m @ 100 m
7x: 16.4' @ 100 yd / 5.4 m @ 100 m Exit Pupil Diameter 2x: 16 mm
7x: 4.6 mm Eye Relief 2.7" / 68.6 mm Impact Point Correction 160 MOA (Windage & Elevation)
Adjustment per Click: 1/2 MOA Parallax Correction Yes, 75 yd / 68.6 m Anti-Reflective Coatings Fully Multicoated Reticle Reticle Type XBR-2 Reticle (Second Focal Plane) Illumination Battery-Powered Illumination: Green/Red General Maintube Diameter 30 mm Battery 1x CR2032 Environmental Resistance Water-Resistant (Unrated) Fogproof Yes, Nitrogen Filled Materials Aluminum Dimensions Length: 9.5" / 241.3 mm Weight 14 oz / 397 g Packaging Info Package Weight 1.895 lb Box Dimensions (LxWxH) 14.4 x 4.5 x 3.9"
