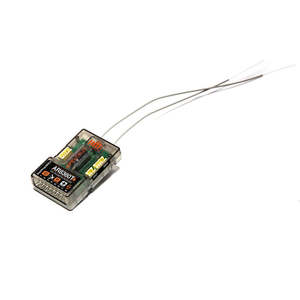

AR8360T+ 8 Channel AS3X+ & SAFE Telemetry Receiver by Spektrum
The Spektrum™ AR8360T 8-Channel AS3X /SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T is a full-range 8-channel receiver with built-in AS3X ® and SAFE® stabilization. The all-new AS3X stabilization algorithm creates better flight performance, increased sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want. Key Features
- Compatible with all Spektrum™ DSM2 and DSMX transmitters
- Built in AS3X Stabilization System with SAFE flight envelope protection
- Smart Transmitter Model File Download Support
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude, and vario telemetry data without the need of additional sensors In The Box
- (1) AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
- (1) Product Manual Needed to Complete
- (1) Spektrum Telemetry Capable Transmitter Spektrum AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver Overview
The AR8360T features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through forward programming.
Please Note:
The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.
These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.
Using this receiver in turbine powered aircraft models is not recommended. Spektrum AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver Features
- Bind button allows for easy binding and eliminates the use of bind plug
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
- End pin output pins for easy and compact installation
- AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
- Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires
- Forward Programming capable for setting individual failsafe parameters per channel and more NEXT GENERATION IN FLIGHT STABILIZATION
The all-new AS3X features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.
Key AS3X improvements include:
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gryo filtering
- Canard and Thrust Vectoring Support SMART TRANSMITTER MODEL FILES SUPPORT
Smart Transmitter Model Files is a new feature on the AR8360T receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.
Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates. AS3X FORWARD PROGRAMMING
You can configure the AR8360T receiver wirelessly, directly from any
