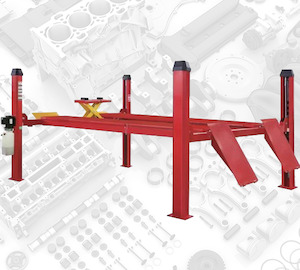

Hydraulic Four Post Lift ESW-6340C

Hydraulic Four Post Lift

Wheel alignment compatible

Model: ESW-6340C

Features:
- Manual lock release.
- Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
- Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
- With wire control security lock, with a wire rope fracture protection, operation safety.
- Eight—point locking system, easy to operate.
- Can be locked in the desired height of operation, safety and reliablity.
- Runway spacing is adjustable for different wheel base vehicle.
- With the second lift pulley, can adopt the manual release, pneumatic release and hydraulic.

Technical specifications:

Lifting capacity: 5000kg

Lifting height: (Main) 1500mm (Jack) 350mm Min. height: 200mm

Length of the platform: 5000mm Platform width: 550mm

Motor power: 2.2kw-230v

Oil pressure rating: 24Mpa

Air pressure: 0.6-0.8 MPa

Weight: 1250kg

Warranty:

Three years warranty on structure. One year warranty on parts.
