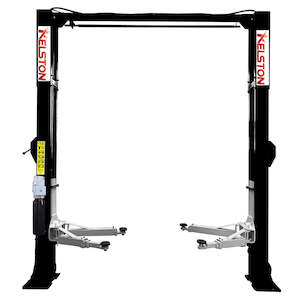

Two Post Hoist Clear Floor -TC45S

Single/Three Phase Aluminium Motor

Model: TC45S

Strengthen 8 Bend Post

Automatic Stop At Maximum Lifting Height

Mechanical Safety Latch With Single-Side Lever Lock Release

Vehicle Door Anti-Crush Rubber Protection

Synchronization Of Hydraulic Cylinders Independent From Load Distribution With Cable Levelling System

Swing Arm Support With High Quality Wear-Resistant Rubber Pads

Two Three Stage Asymmetrical Arm Mixed

Use Double Cylinder, Chain And Steel Rope To Balance, Make Sure The Lift Moving Smoothly

Lift Capacity: 4500KG

Lift Height: 1820mm

Min Lift Height: 95mm

Overall Height: 3720mm

Overall Width: 3418mm

Width Between Columns: 2788mm

Lifting Time: Approx. 35s

Falling Time: 20s

Warranty:

Five years warranty on structure. Two years warranty on parts.
