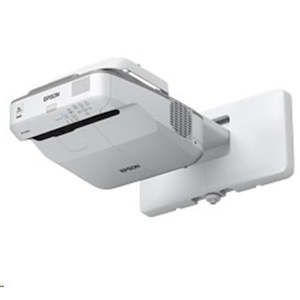

Epson EB-685W 3500lm WXGA Ultra Short Throw 3LCD Lamp Projector

100% Traditional Laybuy. Delivery after full payment. Attention, eager beaver! Need your delivery in a flash? No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!

Epson V11H744553

Take classroom collaboration to another level with the Epson EB-600 series ultra-short throw projectors. Designed for today's BYOD classroom, these projectors display 100" images from just 29cm away for optimal visibility. Offering 3x Higher Colour Brightness than competitive models, Epson 3LCD projectors and displays ensure bright, vivid images.

It also features wireless (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks - up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.

TECHNOLOGY

Projection Technology Epson 3LCD, 3-chip technology

Projection System RGB liquid crystal shutter projection system

LCD Panel 0.59-inch with (D9, C2 Fine)

OPTICAL

Zoom Ratio 1.0 - 1.35 (Digital Zoom)

Screen Size (Projection Distance) 60.0" to 100.0" 35.4 to 60.1cm
74.3" screen 44.3 cm

Throw Ratio 0.28 (Zoom:Wide)
0.37 (Zoom:Tele)

Projection Lens Type No Optical / Focus (Manual)

Projection Lens F Number 2.6

Projection Lens Focal Length 3.7 mm

Focus Method Manual Focus

Offset 5.8:-2


White Light Output 3,500 lumens

Colour Light Output 3,500 lumens

Resolution WXGA

Native Aspect Ratio 16:10

Contrast Ratio 14,000:1

Keystone Correction Vertical -3 to 3 degrees

Horizontal -3 to 3 degrees

Colour Reproduction Up to 1.07 billion colours

Colour Processing 10 bit

CONNECTIVITY

Video I/O - Input

2x RGB D-sub 15pin
Computer 2 in common with Monitor Out
1x RCA Composite

Video I/O - Output

1x RGB D-sub 15pin
Computer 2 in common with Monitor Out (Output signal : Computer 1 only)

Digital Input 3x HDMI (1 supports MHL)

Audio I/O - Input 3x Stereo mini

Audio I/O - Output 1x Stereo mini

Mic I/O - Input 1x Stereo mini

Control I/O 1x RS-232C D-sub 9pin

USB I/O

1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)

Network I/O

1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)

Wireless Connectivity

Optional ELPAP10 Wireless LAN unit

Speaker Output

Monaural: 16 W x 1

ADVANCED FEATURES

EasyMP Network Projector control and projector management via network Yes

AMX Device Discovery Yes

Crestron Integrated Partner Yes

Crestron RoomView Yes

Extron IP Link Yes

Control4 Yes

EasyMP Network Multi PC Projection Yes

Message Broadcasting Yes

Firmware update

Network via LAN cable, USB A via USB thumb drive, USB B via USB cable

Copy OSD settings

Network via LAN cable, USB A via USB thumb drive, USB B via USB cable

Quick Wireless Connection Yes

Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)

Instant Off Yes

Direct Power On Yes

Auto Power On Yes (Computer1,USB-B)

Security

- Kensington - lock provision
- Padlock & Security cable hole
- Wireless LAN unit lock
- Password protect function (Power On, Network, Protection of User logo)

Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard

Integrated Mount

Optional (ELPMB46) GENERAL
