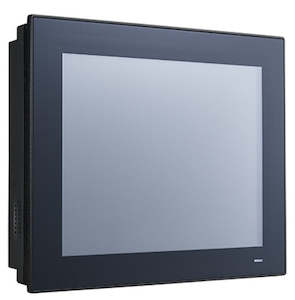

Advantech PPC-3100-RE9A 10.4" SVGA TFT LCD with resistive touchscreen;

100% Traditional Laybuy. Delivery after full payment. Attention, eager beaver! Need your delivery in a flash? No worries, mate! We're here to save the day! Just give us an email at admin@layawaydepot.co.nz  and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!

The PPC-3100 is a 10.4" fanless panel PC equipped with a high-performance Intel® Atom„¢ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.

- 10.4" SVGA TFT LCD with resistive touchscreen
- Intel® Atom„¢ E3940, 1.6 GHz, processor
- Up to 8 GB DDR3L 1866 SDRAM
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Fanless design with low power consumption
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)
- No RED Certification

Environment:

Ingress Protection:Front Panel IP66

Operating Temperature:0~50 °C (32~122 °F)

Relative Humidity:10~95% RH (non-condensing)

Storage Temperature:-30~60 °C (-22~140 °F)

Vibration Protection:1 Grms, random

Hardware:

Certification:CE, FCC Class B, BSMI, CB, UL, CCC, UKCA

CPU:Intel® Atom„¢ E3940 1.6GHz Qua-Core

Ethernet:Intel® i210-IT GbE

Expansion:1 x Full-size mPCIe slot

I/O:4 x RS-232, 1 x RS-422/485 , 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x HDMI, 1 x GPIO

LAN:2 x 10/100/1000 Mbps

Memory:1 x DDR3L SO-DIMM Slot

OS Support:Microsoft® Windows 10 , Microsoft® Windows 10 LTSC, Linux, Android

Power Consumption:30 W @ 19 VDC

Power Input:9~32 VDC

I/O Interface:

Audio:Line-Out, Microphone

Displays:1 x VGA, 1 x HDMI

Power Connector:1 x 2-Pin Terminal Block

Serial Ports:4 x RS-232, 1 x isolated RS-422/485

LCD Display:

Backlight Life (hrs):30,000

Display Size:10.4"

Luminance (cd/m2):400

Max. Resolution:800 x 600

Viewing Angle (H/V°):160/140

Mechanical:

Dimension (W x H x D):272 x 217 x 58 mm

Enclosure:Die-cast aluminum alloy, PC ABS

Mounting:Stand, Wall, VESA, Panel

Weight (Net):2.8 kg (6.17 lb)

Touchscreen:Touch Type

5-wire resistive:USB Vision

Connector:4 x USB 3.0 Type A
