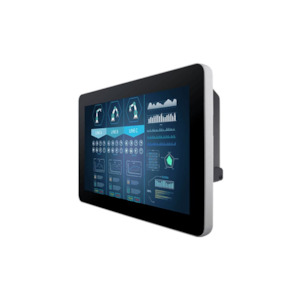

Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design

100% Traditional Laybuy. Delivery after full payment. Attention, eager beaver! Need your delivery in a flash? No worries, mate! We're here to save the day! Just give us an email at admin@layawaydepot.co.nz  and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands! Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution. Easy Mounting

This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.

- 10.1" 1280 x 800 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- Front IP65 Water and Dust Proof
- VGA input and variety of optional connectors
- USB port for touch
- Stylish and elegant design

Display

Size 10.1 inches

Touch / Glass Projected Capacitive Multi Touch Screen
Anti-glare Coating (Optional)

Resolution 1280x800

Panel Brightness 350 nits
1000 nits(Optional)

Contrast Ratio 800:1

View Angles 85,85,85,85

Display Color 16.7M Colors

Active Area 216.96 x135.6 mm

Environment

Operating Humidity 10% to 90% (non-condensing)

Operating Temperature 0~50°C

Storage Temperature -10~60°C

Certification

Certification CE, FCC

IO Ports

USB Port 1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)

Audio 1 x Speaker (Optional)

Mechanical

Dimension 264.57 x 173.29 x 35.70 mm

Mounting VESA Mount

Enclosure Aluminum

Cooling System Fanless Design

PowerÂ

Power Rating 12V DC input

Control

Button 5 Keys: - , , Power , Esc , Enter

We can only process ONE order per customer at a time.Â
