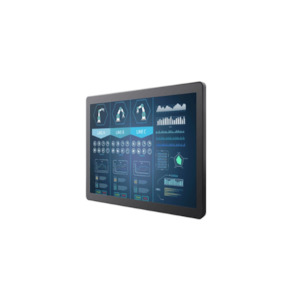

Winmate Touch Display R19L100-GCM1 19' PCAP, 1280 x 1024, 250 nits, Front IP65, 1xVGA,1 x HDMI, 1 x DVI (Optional), Fanless Design,12V DC input,VESA Mount/ Panel Mount

100% Traditional Laybuy. Delivery after full payment. Attention, eager beaver! Need your delivery in a flash? No worries, mate! We're here to save the day! Just give us an email at admin@layawaydepot.co.nz and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands! Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets. Dust and Water Protection

The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments. Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity - especially in heavy-duty applications where dusty conditions are prevalent. Comprehensive I/O Ports

Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection. Anti-Shock and Vibration

The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.

- 19" 1280 x 1024 Resolution Front IP65 PCAP Display
- VGA input and HDMI input
- Projected Capacitive Multi-Touch
- Front IP65 for protection against water and dust

Display

Size 19.0 inches

Touch / Glass Projected Capacitive Multi Touch Screen

Resolution 1280x1024

Panel Brightness 250 nits

Contrast Ratio 1000:1

View Angles 85,85,80,80

Display Color 16.7M Colors

Environment

Operating Humidity 10% to 90% (Non-Condensing)

Operating Temperature 0~50°C

Shock 40g for 11ms

Vibration 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz

IP rating Front IP65

Certification

Certification CE, FCC

IO Ports USB Port 1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)

Mechanical

Dimension 445 x 370 x 51 mm

Mounting VESA Mount/ Panel Mount

Enclosure Plastic Bezel & Metal back cover

Cooling System Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Optional Accessory Remote Controller (Optional,Varies by product)

Power

Power Rating 12V DC input

Control Button 5 Keys: - , , Power , Esc , Enter
