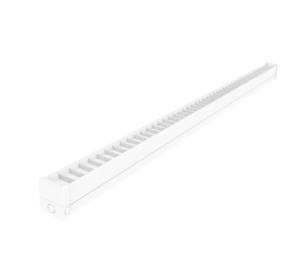

LED Batten Low Glare Wattage & Color Selectable w/ Sensor

The Educator is a high-performance batten luminaire purpose-built for modern learning environments. Engineered with a low-glare grille and exceptional light quality, it enhances visual comfort, focus, and clarity for both students and educators. Designed to balance efficiency, functionality, and refined aesthetics, The Educator delivers dependable, professional-grade lighting where performance truly matters.

General:
• IP Rating - IP20
• IK Rating - IK08
• Mounting Type - Surface Mounted or Suspended
• Weight - 1.3kg
• Dimensions(mm) - 1483L x 67W x 73D
• Material - Aluminium PC
• Colour way - White

Electrical:
• Voltage - 230V
• Class - Class (No Earth Required)
• Wattage - Selectable (30W - 40W - 50W)
• Ambient Operating Temperature - (-25° ~ 45°)
• Lumen Efficacy - 100lm/W( /-5%)
• Lumen Maintenance(L70) - 50,000 Ta25°
• Power Factor - >0.9
• Dimmable - No
Photometrics:
• Lumens - 2900-5100lm( /-5%)(refer below for details)
30W 3K 2900lm 30W 4K 3100lm 30W 6.5K 3100lm 40W 3K 3760lm 40W 4K 4100lm 40W 6.5K 3360lm 50W 3K 4940lm 50W 4K 5100lm 50W 6.5K 4900lm

• Optics - Opal with Grill
• SDCM50

Sensor:
• Type - Plug in Microwave
• Detection Distance - 4m max
• Time duration - 5s - 10m
• Daylight Lux function - Yes, 30lux
• Standby dimming- 0%-20%
