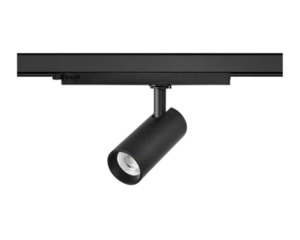

LED Track Spotlight 15W Taylor Elite

Taylor Elite 3-circuit spotlight is a premium product, designed to deliver exceptional performance and versatility for a wide range of interior lighting applications. The 3-circuit track system allows for flexible installation configurations, including horizontal, vertical, ceiling-mounted, wall-mounted, or free-standing setups, catering to diverse design requirements. Combined with its high quality colour rendering, the Taylor Elite ensures superb illumination, no matter what your requirements.

General:

- Colour Ways - Black or White
- Dimensions- 55Ø x 120mmL
- IP Rating - IP20
- Lifespan(L70) -50,000hrs
- Mounting Type -3 Circuit Mountable
- Track-mounted spotlight
- Code - TTS15-BLK/WH

Electrical:

- Dimmable - Yes, Triac
- Lumen Efficacy - 70lm/W ( /- 5%)
- Lumen Maintenance - (L70) 50,000 Ta 25°C
- Operating temperature: -12 ~ 45° C
- Voltage - 230V
- Wattage - 15W

Photometrics:

- Beam Angle - 36°
- Colour Temperature - CCT Switchable: 3000K - 4000K - 5000K
- CRI - >90
- Lamp Type - Integrated SMD LED
- Lens - Clear
- Lumens - ( /- 5%) 1000lm (3K) or 110000lm (4K) or 1150lm (5K)\
- R9 Value - >50
- Reflector – Same colour as body (black/white)

When connecting spotlights to the track, ensure they are connected correctly. Align the labelling on the spotlight with the 'lip' of the track for correct installation. Once inserted, select the designed circuit as labelled on the luminaire.
