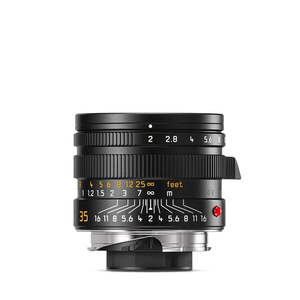

LEICA APO-SUMMICRON-M 35MM F2 ASPH BLACK
With its intricate design, special glass types and high-precision craftsmanship, the APO-Summicron-M 35 f/2 ASPH. ranks among Leica’s most elaborately constructed lenses. The result: a close-to flawless imaging performance. Three of the ten lens elements (divided into five groups) feature aspherical surfaces – one of them on both sides. In addition, the new M lens renders images with practically no chromatic aberration, thanks to apochromatic correction – a rare quality in lenses of this focal length.
The specially designed lens hood, in combination with highly effective anti-reflective coatings, make the APO-Summicron-M 35 f/2 ASPH. virtually impervious to stray light and glare.
Specifications
Length : approx. 40.9/49.3 mm (without/with lens hood)
Diameter: approx. 53 mm (without lens hood)
Lens hood: Screw-on
Filter thread: E39
Bayonet: Leica M bayonet with 6-bit encoding
Aperture setting/Function: Lock blade, with half-increment lock settings
Smallest aperture: 16
Number of aperture blades: 11
Focusing scale: Combined scale meter (m)/foot (ft)
Smallest object field: Full-frame: 135 × 203 mm, M8: 101 × 152 mm
Largest scale: 1:5.6
Number of lenses/assemblies: 10/5
Number of aspherical surfaces: 4
Position of the entrance pupil before the bayonet: 13.8 mm
Focus range: 0.3 m to infinity
View angle (diagonal/horizontal/vertical) :
Full-frame (24 × 36 mm) : 62.5°/53.6°/37.2°
for M8 (18 × 27 mm) : 47.0°/40.0°/28.0°, equivalent focal length approx. 46.67 mm
