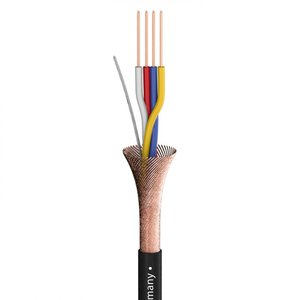

Sommer Cable - Cicada 4

Price Is Per Meter Maybe the smallest €œstar quad€œ of all times €¦

Is called SC-CICADA 4 with an outside diameter of merely 3.4mm (0.13 in.). Technically this cable is based on the very successful SC-CICADA SO-D14 variant, but instead of two, it has now four wires arranged in a star shape, yet remains just as flexible and top-performing. In a crossover wiring this version delivers extremely good electrical values, especially when compared to traditional microphone cables. Like the SC-CICADA SOD-14, the SC-CICADA 4 also features a robust, notch-resistant and sweat absorbing PUR Master Blend outerjacket €“ ideal for wiring up fitness gyms -, a tight spiral shielding with 95 % coverage and also a pre-stranded drain wire which makes cable assembly a lot easier and gives the cable an additional kink protection and a high tensile strength. The SC-CICADA 4 is the perfect microphone cable for use with mini XLR plugs, for fully assigned MIDI and DIN cables or as a compact patch cable. It is recommended e.g. for the internal wiring in racks or audio components, as feed line for clip or ear microphones or also for manufacturing high-grade adapter cables. Advantages:

- Super flexible due to fine CU litz construction
- Easy to handle owing to the extra drain wire (0.22 mm²)
- Tight spiral screen with 95 % coverage for excellent shielding
- Durable and notch-resistant due to the sturdy PUR jacket Application:

- Interior wiring of mixing consoles, racks, and other audio
components
- For connecting mini XLRs, mini jacks, fully assigned MIDI and DIN cables
- Flexible cable for clip-on microphones, earphones, speaker units,.
- Assembly of adapter cable

Specifications:

Article number 200-0461 Name SC-CICADA 4 EAN 4049371360630 Properties OFC oxygen free copper Properties PUR Master Blend Properties Analog Application area Mobile outdoor / indoor Application area Installation Application Patch & Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction (4LI2Y0,14mm²)D11Y Jacket material PUR Master-Blend Jacket Ø mm 3,40 Inner conductor (audio) 4 Inner conductor (audio) mm² 0,14 Inner conductor Ø (audio) mm 0,42 AWG (audio) 26 Shielding Copper spiral shielding filler strand, tin-plated (0.22 mm²) Copper strands (audio) 18 Copper strand Ø (audio) mm 0,10 Conductor insulation material PE Wire insulation material (audio) PE Conductor insulation Ø mm 0,90 Conductor insulation Ø (audio) mm 0,90 Weight per 1 m g 20 UV-resistant yes Fire load per m kWh 0,08 Style variant round Packing 100 m spool Temperature min. °C -25 Temperature max. °C 70 Width mm 3,4 Height mm 3,4 Capac. cond./cond. per 1 m (audio) pF 75 Capacity wire/wire at 1 ft. (audio) pF 22,86 Capac. cond./shield. per 1 m (audio) pF 140 Capacity wire/electic screen at 1 ft. (audio) pF 42,672 Insulation resist. per 1 km GΩ 1 Insulation resist. per 1000 feet GΩ 0,3048 Insulation resist. per 1 km (audio) GΩ 1 Insulation resist. per 1000 feet (audio) GΩ 0,3048 Conductor resistance per 1 km Ω 145 Conductor resistance per 1000 ft. Ω 44,196 Conductor resistance per 1 km (audio) Ω 145 Conductor resistance per 1000 ft. (audio) Ω 44,196 Shield. resistance per 1 km Ω 39 Shield. resistance per 1000 ft. Ω 11,8872 Old article number 999-0001-329
