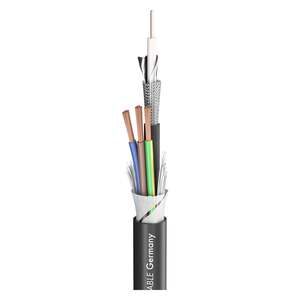

Sommer Cable - Observer 1
Suitable for Neutrik - NBNC75BFG7
When cables get married.
This is a logical consequence then! Inseparably the video and power lines are embedded side by side in one jacket. The SC-Observer 1 HD consists of a high-grade 75 Ω video cable, surrounded by a stranded power cable with a wire cross-section of 3 x 0,75 mm². This construction makes it possible to transmit video signals while at the same time establishing the power supply to the monitor or camera. The cable is very flexible, cold resistant, robust and very easy to handle. Advantages:
- 75 Ω cable and power line in one cable
- Very durable and rugged due to high-quality PVC jacket
- Very good damping values of the 75 Ω video line
- Excellent shielding owing to the combination of Cu mesh screen plus AL/PT foil Application:
- Control of surveillance monitors
- Studio and fixed installations
Specifications: Article number 600-2101 Name SC-Observer 1 HD EAN 4049371003995 Properties Underwater / submerged Properties Analog Properties SDI Properties Digital 75 Ω Properties OFC oxygen free copper Application area Mobile outdoor / indoor Application area Installation Application area Studio / Broadcast Application Video- & Power cable Colour black Colour detailed black Construction LI02YSC12Y0,60mm 3x0,75mm² Y Construction (video) LI02YSC12Y0,60mm Construction (power) 3 x 0,75 mm² Jacket material S-PVC Jacket Ø mm 9,00 Jacket Ø (power) mm 0,00 Number of Channels (video) 1 Number of Channels (power) 1 Inner conductor (video) 1 Inner conductor (power) 3 Inner conductor (video) mm² 0,28 Inner conductor (power) mm² 0,75 Inner conductor Ø (video) mm 0,60 Inner conductor Ø (power) mm 0,98 AWG (video) 23 AWG (power) 18 Shielding (video) Copper braiding AL / PT foil Shielding factor % 100 Copper strands (video) 1 Copper strand Ø (video) mm 0,60 Wire insulation material (video) Gas Injected-PE Conductor insulation Ø (video) mm 2,80 Weight per 1 m g 110 UV-resistant yes Fire load per m kWh 0,38 Style variant round Packing bulk stock Temperature min. °C -20 Temperature max. °C 80 Width mm 9 Height mm 9 Capacity wire/electic screen at 1m (video) pF 55 Capacity wire/electic screen at 1 ft. (video) pF 16,764 Damping at 50 MHz (100m & 20° C) dB 7,3 Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB 2,225 Damping at 100 MHz (100m & 20° C) dB 10,8 Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB 3,2918 Damping at 200 MHz (100m & 20° C) dB 14,5 Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB 4,4196 Damping at 470 MHz (100m & 20° C) dB 22,7 Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB 6,919 Damping at 862 MHz (100m & 20° C) dB 31,1 Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB 9,4793 Damping at 1000 MHz (100m & 20° C) dB 33,6 Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB 10,2413 Damping at 1485 MHz (100m & 20° C) dB 41,2 Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB 12,5578 Damping at 1750 MHz (100m & 20° C) dB 45,5 Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB 13,8684 Damping at 2150 MHz (100m & 20° C) dB 49,5 Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB 15,0876 Impedance (video) Ω 75 Conductor resistance per 1 km Ω 62,2 Conductor resistance per 1000 ft. Ω 18,9586 BPVo-Euroclass Fca
