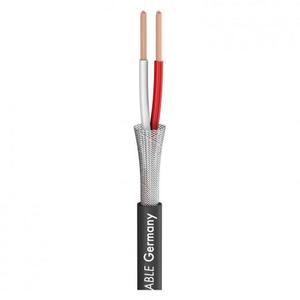

Sommer Cable - Scuba 14 Highflex - Black
Price Is Per Meter Through thick and thin.
the new SC-Scuba 14 HIGHFLEX will be right by your side. It is very thin, space-saving, flexible and ideally suited for connectors with a small diameter, e.g. LEMO patchboards, mini jacks, RCA. (and thus perfect for patch cables) and rack cabling. Their diameter and wire construction has been designed according to common broadcasting standards and a dense copper mesh screen with 90 % shielding coverage protects the cable from interference. For reasons of clarity we offer the SC-Scuba 14 HIGHFLEX in five different jacket colors. Advantages:
- Very thin, high tensile strength and flexibility
- Available in five different colours
- Good shielding due to the dense Cu mesh screen
- Affordable price Application:
- Patch cabling (LEMO), gooseneck microphone cable
- Home recording
- Rack and console cabling
Specifications: Article number 200-0311 Name SC-Scuba 14 EAN 4049371002004 Properties Analog Properties OFC oxygen free copper Application area Studio / Broadcast Application Patch & Microphone Cable Colour black Colour detailed black Signal transmission symmetrical Construction (2LI2Y0,14mm²)CY Jacket material PVC Jacket Ø mm 3,80 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) mm² 0,14 Inner conductor Ø (audio) mm 0,42 AWG (audio) 26 Shielding Copper braiding shield., tin-plated, with 0.10 mm indiv. strand Shielding factor % 90 Copper strands (audio) 18 Copper strand Ø (audio) mm 0,10 Conductor insulation material PE Conductor insulation Ø mm 1,15 Weight per 1 m g 25 UV-resistant yes Fire load per m kWh 0,09 Style variant round Packing 500 m spool Packing 100 m spool Temperature min. °C -25 Temperature max. °C 70 Width mm 3,8 Height mm 3,8 Capac. cond./cond. per 1 m (audio) pF 65 Capacity wire/wire at 1 ft. (audio) pF 19,812 Capac. cond./shield. per 1 m (audio) pF 130 Capacity wire/electic screen at 1 ft. (audio) pF 39,624 Impedance Ω 100 Insulation resist. per 1 km GΩ 1 Insulation resist. per 1000 feet GΩ 0,3048 Insulation resist. per 1 km (audio) GΩ 1 Insulation resist. per 1000 feet (audio) GΩ 0,3048 Conductor resistance per 1 km Ω 135 Conductor resistance per 1000 ft. Ω 41,148 Shield. resistance per 1 km Ω 30 Shield. resistance per 1000 ft. Ω 9,144 BPVo-Euroclass Fca
