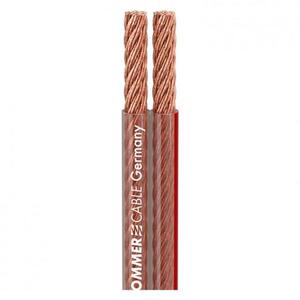

Sommer Cable - Twincord 4.0mm

Price Is Per Meter Transparency is called for.

not only for the jacket material, but also for sound transmission between HiFi-amplifiers and speakers. The SC-Twincord  is a reasonable, but very dependable speaker cable with high quality copper and more dense stranding than the standard cable.
It also has a somewhat harder jacket material, so that it can be installed very easily, e.g. under your carpet or in areas of your apartment that are difficult to access.
The professional sound technician or soundman uses the SC-Twincord  for fixed installation or for interior wiring of racks and speaker systems. Advantages:

- Good & reasonably priced
- Very flat and easy to install due €œmemory€œ effect
- Plus pin identification by a coloured strip Application:

- Dependable, long-life hifi cable
- Interior wiring of racks and HiFi Loudspeakers
- Permanent installation in buildings, recording studios.

Specifications: Article number 400-0400 Name SC-Twincord EAN 4049371002820 Properties OFC oxygen free copper Properties Analog Application area Installation Application area Studio / Broadcast Application Speaker Cable Colour transparent Colour detailed transparent Construction 2LIY4,00mm² Jacket material PVC Jacket Ø mm 0,00 Number of Channels (audio) 1 Inner conductor (audio) 2 Inner conductor (audio) mm² 4,00 Inner conductor Ø (audio) mm 2,26 AWG (audio) 11 Copper strands (audio) 224 Copper strand Ø (audio) mm 0,15 Weight per 1 m g 97,4 Fire load per m kWh 0,16 Style variant twin Packing 200 m Temperature min. °C -20 Temperature max. °C 70 Width mm 9 Height mm 4,3 Capac. cond./cond. per 1 m (audio) pF 56 Capacity wire/wire at 1 ft. (audio) pF 17,0688 Insulation resist. per 1 km GΩ 5 Insulation resist. per 1000 feet GΩ 1,524 Insulation resist. per 1 km (audio) GΩ 5 Insulation resist. per 1000 feet (audio) GΩ 1,524 BPVo-Euroclass Fca
