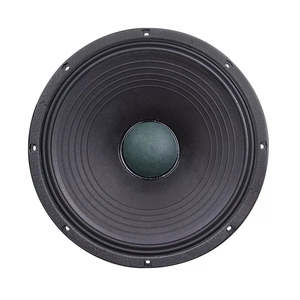

Eminence - Cannabass CB3015N-8 - 15"
Eminence is proud to introduce the CannaBass™ CB3015N-8. Engineered with the modern player in mind, the CB3015N-8 features organic and natural damping properties delivering a cleaner, more authentic sound through a unique combination of cutting-edge speaker technology, the superior qualities of a hemp dust cap, and a proprietary CBD coating.
The CannaBass™ CB3015N-8’s black paper cone features a CBD coating on the back that supplies a damping quality and enhances the smooth frequency response. The natural material in the green hemp dust cap makes it an eco-friendly choice and provides additional natural damping for the CB3015N-8, creating a more pristine sound.
The CannaBass™ CB3015N-8 is ideal for players who demand the best sound quality. Featuring a high-temperature Neo magnet, the CannaBass™ CB3010N-8 is powerful and lightweight yet durable, offering a steady flux field that ensures high-quality sound. With a 7.22mm xMax and 1000-watt music power rating (500W EIA), the CB3015N-8 is expertly voiced to provide a loud, low distortion, low-frequency range. It delivers a powerful, high-quality sound that is perfect for modern musicians. Additionally, our three-inch inside/outside wound voice coil on a vented fiberglass bobbin provides lower power compression and distortion for a more accurate and authentic sound.
Specifications: Nominal Basket Diameter 15", 381 mm Nominal Impedance 8 Ω Power Rating Program Power 1000 W Watts 500 W Resonance 40.67 Hz Usable Frequency Range 40 Hz - 3.7 kHz Sensitivity 98.1 dB Magnet Weight 11 oz. Gap Height 0.365", 9.27 mm Voice Coil Diameter 3", 76.2 mm THIELE & SMALL PARAMETERS Resonant Frequency (fs) 40.67 Hz DC Resistance (Re) 5.50 Ω Coil Inductance (Le) 0.59m H Mechanical Q (Qms) 3.6 Electromagnetic Q (Qes) 0.43 Total Q (Qts) 0.39 Compliance Equivalent Volume (Vas) 162.87 liters / 5.75 cu.ft. Peak Diaphragm Displacement Volume (Vd) 618.25 cc Mechanical Compliance of Suspension (Cms) 0.16 mm/N BL Product (BL) 17.76 T-M Diaphragm Mass Inc. Airload (MMs) 96.75 grams Efficiency Bandwidth Product (EBP) 94.34
Maximum Linear Excursion (Xmax) 7.22 mm Surface Area of Cone (Sd) 856.3 cm2 Maximum Mechanical Limit (Xlim) 14.2 mm MOUNTING INFORMATION Recommended Enclosure Volume Sealed Not Recommended
Vented Acceptable Driver Volume Displaced 155.52 cu.in. / 2.56 liters Overall Diameter 15.32", 389.13 mm Baffle Hole Diameter 14.03", 356.36 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.28", 7.112mm Mounting Holes B.C.D. 14.56", 389.82mm Depth 7.1", 180.34 mm Net Weight 8.2 lbs, 3.72 kg Shipping Weight 10.4 lbs, 4.72 kgs MATERIALS OF CONSTRUCTION Coil Construction Inside/Outside copper voice coil Coil Former Fiberglass former Magnet Composition Neodymium magnet Core Details Vented core Basket Materials Cast Aluminum Basket Cone Composition CBD treated paper cone Cone Edge Composition Cloth cone edge Dust Cap Composition Hempylene paper dustcap
