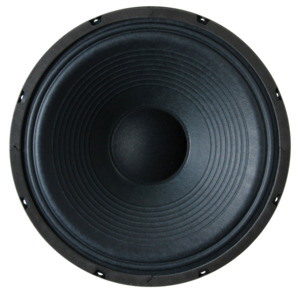

Eminence - Maverick
Don’t sacrifice tone for lower stage volume! The Eminence Maverick™ guitar speaker with patent-pending FDM™ technology puts tonal control at your fingertips. Simply adjust the knob on the back of the speaker to attenuate volume while creating an overdriven, saturated tube tone. Perfect for small venues, studios and practice situations. Very balanced American tone with fat lows, warm mids, and articulate highs.
Specifications: Nominal Basket Diameter 12", 305 mm Nominal Impedance 8 Ω Power Rating : Watts 75 W Music Program N/A Resonance 82 Hz Usable Frequency Range 75 Hz - 5.2 kHz Sensitivity 92.5 - 99.5 dB Magnet Weight 38 oz. Gap Height 0.312", 7.92 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS - MAX ATTENUATION: Resonant Frequency (fs) 82.6 Hz DC Resistance (Re) 5.96 Ω Coil Inductance (Le) 0.38 mH Mechanical Q (Qms) 16.26 Electromagnetic Q (Qes) 6.16 Total Q (Qts) 4.47 Compliance Equivalent Volume (Vas) 48.71 liters / 1.72 cu.ft. Peak Diaphragm Displacement Volume (Vd) 24.42cc Mechanical Compliance of Suspension (Cms) 0.13 mm/N BL Product (BL) 3.76 T-M Diaphragm Mass Inc. Airload (MMs) 28.2 grams Efficiency Bandwidth Product (EBP) 13.4 Maximum Linear Excursion (Xmax).047 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A THIELE & SMALL PARAMETERS - FULL OUTPUT: Resonant Frequency (fs) 82 Hz DC Resistance (Re) 5.99 Ω Coil Inductance (Le) 0.48m H Mechanical Q (Qms) 16.77 Electromagnetic Q (Qes) 1.17 Total Q (Qts) 1.09 Compliance Equivalent Volume (Vas) 48.71 liters / 1.72 cu.ft. Peak Diaphragm Displacement Volume (Vd) 24.42 cc Mechanical Compliance of Suspension (Cms) 0.13 mm/N BL Product (BL) 8.71 T-M Diaphragm Mass Inc. Airload (MMs) 29 grams Efficiency Bandwidth Product (EBP) 71 Maximum Linear Excursion (Xmax) 0.47 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION Recommended Enclosure Volume: Sealed N/a Vented Acceptable Driver Volume Displaced 0.078 cu.ft. / 2.2 liters Overall Diameter 12.03", 305.31 mm Baffle Hole Diameter 10.97", 278.64 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.35mm Mounting Holes B.C.D. 11.63", 295.4mm Depth 6.56", 166.68 mm Net Weight 7.8 lbs, 3.54 kg Shipping Weight 9.7 lbs, 4.4 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details FDM Technology Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap
