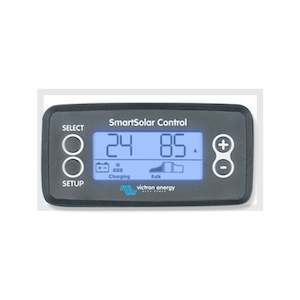

Victron SMARTSOLAR Pluggable Display

The SmartSolar Control Display is a pluggable LCD display for Victron SmartSolar Charge Controllers. Simply remove the rubber seal that protects the plug on the front of the controller and plug in the display.

The display plugs directly into the front face of the solar charger. It can act as either a permanent or a temporary display. Simply remove the plastic cover that protects the display terminal on the front of the controller and then plug in the display.

The display can be used to monitor the solar charger and to view both live and historical data. The display can also be used to configure solar charger settings.

Examples of live and historical monitoring:

- PV power, yield, voltage, and current.
- Battery voltage, current, and charge stage.
- Load output state and current (only available if the solar charger is equipped with a load output).
- 30-day historical values.
- Cumulative historical values over the life of the solar charger.

Compatibility

The SmartSolar Control display is a dedicated display for the following MPPT solar charger range:

- SmartSolar MPPT 150/45 up to 250/100
- SmartSolar MPPT 150/70 up to 250/100 VE.Can
- BlueSolar MPPT 150/70 up to 250/100 VE.Can

These solar chargers can also be recognized by a small plastic cover on the front face with the text "display option".
